The class responsible for managing and reporting the state of the game. It owns its own instance of GameOfUrModel, and acts as the interface between it and engine-specific objects. More...

#include <ur_controller.hpp>

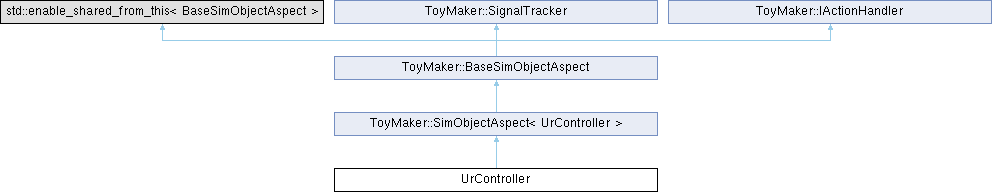

Inheritance diagram for UrController:

Public Member Functions
	UrController ()
	Constructs a new UrController aspect.

std::shared_ptr< BaseSimObjectAspect >	clone () const override
	Constructs an UrController object using this one as its blueprint.

const GameOfUrModel &	getModel () const
	Gets a const reference to the underlying data model of this object.

std::unique_ptr< UrPlayerControls >	createControls ()
	Creates an instance of UrPlayerControls, which exposes methods which allow (controlled) interaction with this aspect, corresponding with an ID known by the underlying data model.

Public Member Functions inherited from ToyMaker::BaseSimObjectAspect
virtual	~BaseSimObjectAspect ()=default
	Destroys this object.

virtual void	simulationUpdate (uint32_t simStepMillis)
	Overriding this allows an aspect to respond to simulation updates.

virtual void	variableUpdate (uint32_t variableStepMillis)
	Overriding this allows an aspect to respond to variable updates.

bool	handleAction (const ActionData &actionData, const ActionDefinition &actionDefinition) override final
	Pipes an action received from the InputManager via our SimObject to all that action's handler methods on this aspect.

ViewportNode &	getLocalViewport ()
	Returns the closest ancestor viewport to this node, if one exists (which it should, since this shouldn't be called until this aspect is attached to an active SimObject).

Public Member Functions inherited from ToyMaker::SignalTracker
	SignalTracker ()
	Constructs a new SignalTracker object.

	SignalTracker (const SignalTracker &other)
	Constructs a new SignalTracker.

SignalTracker &	operator= (const SignalTracker &other)
	Copy assignment operator.

	SignalTracker (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, invalidating them from the other.

SignalTracker &	operator= (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, destroying this tracker's resources in the process.

void	connect (const std::string &theirSignal, const std::string &ourObserver, SignalTracker &other)
	Method that connects one of this objects SignalObservers to another tracker's Signal.

Static Public Member Functions
static std::string	getSimObjectAspectTypeName ()
	Gets the aspect type string associated with this object.

static std::shared_ptr< BaseSimObjectAspect >	create (const nlohmann::json &jsonAspectProperties)
	Creates an UrController based on its JSON description.

Public Attributes
ToyMaker::Signal	mSigControllerReady { *this, "ControllerReady" }
	Signal emitted by this object when it is ready to be interacted with by other objects.

ToyMaker::SignalObserver< const std::string & >	mObserveViewSubscribed
	Observer to a signal emitted by views interested in events broadcasted by this object.

ToyMaker::Signal< GamePhaseData >	mSigPhaseUpdated { *this, "PhaseUpdated" }
	Signal emitted when a the game data model reports a change to its phase.

ToyMaker::Signal< GameScoreData >	mSigScoreUpdated { *this, "ScoreUpdated" }
	Signal emitted when the game data model reports a change in score.

ToyMaker::Signal< PlayerData >	mSigPlayerUpdated { *this, "PlayerUpdated" }
	Signal emitted when information associated with a player changes.

ToyMaker::Signal< DiceData >	mSigDiceUpdated { *this, "DiceUpdated" }
	Signal emitted when the game data model reports a change in the state of its dice.

ToyMaker::Signal< MoveResultData >	mSigMoveMade { *this, "MoveMade" }
	Signal emitted when the game data model reports a move successfully executed.

ToyMaker::Signal	mSigViewUpdateStarted { *this, "ViewUpdateStarted" }
	Signal emitted when this controller begins waiting for view updates related to the latest game state change to complete.

ToyMaker::SignalObserver< const std::string & >	mObserveViewUpdateCompleted
	Observer which receives signals from its subscribed views when they report their updates are complete.

ToyMaker::Signal< GamePhaseData >	mSigMovePrompted { *this, "MovePrompted" }
	Signal emitted when the controller expects a player to act, either via the game UI or some other source.

Private Member Functions
bool	viewUpdatesComplete () const
	Returns whether all the views connected with this controller have reported completion of their updates.

void	onViewSubscribed (const std::string &subscriber)
	Adds a view which is interested in receiving information about events regarding changes in the state of the game.

void	onLaunchPieceAttempted (PlayerID player, PieceIdentity piece, glm::u8vec2 launchLocation=glm::u8vec2{0, 0})
	Attempts to launch a game piece to the board.

void	onMoveBoardPieceAttempted (PlayerID player, PieceIdentity piece)
	Attempts to move a piece present on the board according to the current roll.

void	onNextTurnAttempted (PlayerID player)
	Attempts to end the current turn and move to the next one.

void	onDiceRollAttempted (PlayerID player)
	Attempts to roll the dice.

void	onViewUpdatesCompleted (const std::string &viewName)
	The callback, invoked by a subscribed view, where the view reports that it has completed all view changes related to the latest change in game state.

void	onActivated () override
	Initializes the game data model.

Private Attributes
GameOfUrModel	mModel {}
	The game data model this aspect is an interface to.

uint8_t	mControlsCreated {0}
	The number of controls connected with this object created over its lifetime.

std::string	mSceneManagerPath {}
	The path to the scene manager, responsible for navigating between the different game screens in this project.

std::map< std::string, bool >	mViewUpdated {}
	Flags corresponding with various views subscribed with this object.

Friends
class	UrPlayerControls

Additional Inherited Members
Protected Member Functions inherited from ToyMaker::SimObjectAspect< UrController >
	SimObjectAspect (int explicitlyInitializeMe)

Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
	BaseSimObjectAspect (const BaseSimObjectAspect &other)=delete

	BaseSimObjectAspect (BaseSimObjectAspect &&other)=delete

SimObject &	getSimObject ()
	Returns the sim object that this aspect is attached to.

template<typename TComponent>
void	addComponent (const TComponent &component)
	Adds a component of some type to the underlying entity.

template<typename TComponent>
bool	hasComponent ()
	Tests whether a component of some specific type is present on the object.

template<typename TComponent>
void	updateComponent (const TComponent &component)
	Updates the value of a component belonging to this object to a new one.

template<typename TComponent>
TComponent	getComponent (const float simulationProgress=1.f) const
	Gets the value of a component belonging to this object.

template<typename TComponent>
void	removeComponent ()
	Removes a component of some type belonging to the underlying SimObject.

void	addAspect (const nlohmann::json &jsonAspectProperties)
	Adds a new aspect to the underlying SimObject constructed based on its properties in JSON.

void	addAspect (const BaseSimObjectAspect &aspect)
	Adds a new aspect to the underlying SimObject copied from an already existing aspect.

template<typename TSimObjectAspect>
bool	hasAspect () const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.

bool	hasAspect (const std::string &aspectType) const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.

template<typename TSimObjectAspect>
TSimObjectAspect &	getAspect ()
	Gets an aspect of a particular type belonging to the underlying SimObject.

BaseSimObjectAspect &	getAspect (const std::string &aspectType)
	Gets (a base class reference to) an aspect of a particular type belonging to the underlying SimObject.

template<typename TSimObjectAspect>
void	removeAspect ()
	Removes an aspect from the underlying SimObject.

void	addOrReplaceAspect (const BaseSimObjectAspect &aspect)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed as a copy of another.

void	addOrReplaceAspect (const nlohmann::json &jsonAspectProperties)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed from its JSON description.

std::weak_ptr< FixedActionBinding >	declareFixedActionBinding (const std::string &context, const std::string &action, std::function< bool(const ActionData &, const ActionDefinition &)>)
	Binds some method (or any function) present on this object to an action generated by the InputManager.

EntityID	getEntityID () const
	Gets the ID of the ECSWorld Entity belonging to our SimObject.

std::weak_ptr< ECSWorld >	getWorld () const
	Gets a weak reference to the ECSWorld to which our SimObject's entity belongs.

Static Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
template<typename TSimObjectAspectDerived>
static void	registerAspect ()
	Registers an implementation of an aspect with the SimSystem.

Detailed Description

The class responsible for managing and reporting the state of the game. It owns its own instance of GameOfUrModel, and acts as the interface between it and engine-specific objects.

Member Function Documentation

◆ clone()

std::shared_ptr< ToyMaker::BaseSimObjectAspect > UrController::clone ( ) const

overridevirtual

Constructs an UrController object using this one as its blueprint.

Returns: std::shared_ptr<BaseSimObjectAspect> The newly constructed UrController aspect.

Implements ToyMaker::BaseSimObjectAspect.

◆ create()

std::shared_ptr< ToyMaker::BaseSimObjectAspect > UrController::create ( const nlohmann::json & jsonAspectProperties )

static

Creates an UrController based on its JSON description.

Parameters

jsonAspectProperties The JSON description of this instance of UrController.

Returns: std::shared_ptr<BaseSimObjectAspect> The newly constructed aspect.

◆ createControls()

std::unique_ptr< UrPlayerControls > UrController::createControls ( )

Creates an instance of UrPlayerControls, which exposes methods which allow (controlled) interaction with this aspect, corresponding with an ID known by the underlying data model.

No more than two such player controls can exist for a single instance of this controller.

Returns: std::unique_ptr<UrPlayerControls> The interface between this controller and a player of the game.

◆ getModel()

const GameOfUrModel & UrController::getModel ( ) const

inline

Gets a const reference to the underlying data model of this object.

Returns: const GameOfUrModel& A const reference to the underlying game data model.

◆ getSimObjectAspectTypeName()

static std::string UrController::getSimObjectAspectTypeName ( )

inlinestatic

Gets the aspect type string associated with this object.

Returns: std::string The aspect type string associated with this class.

◆ onActivated()

void UrController::onActivated ( )

overrideprivatevirtual

Initializes the game data model.

Reimplemented from ToyMaker::BaseSimObjectAspect.

◆ onDiceRollAttempted()

void UrController::onDiceRollAttempted ( PlayerID player )

private

Attempts to roll the dice.

Parameters

player The player requesting the dice roll.

◆ onLaunchPieceAttempted()

void UrController::onLaunchPieceAttempted	(	PlayerID	player,
		PieceIdentity	piece,
		glm::u8vec2	launchLocation = glm::u8vec2{0,0} )

private

Attempts to launch a game piece to the board.

Parameters

player	The player requesting the launch.
piece	The piece being launched.
launchLocation	The game board grid location to which the player wants the piece launched.

◆ onMoveBoardPieceAttempted()

void UrController::onMoveBoardPieceAttempted	(	PlayerID	player,
		PieceIdentity	piece )

private

Attempts to move a piece present on the board according to the current roll.

Parameters

player	The player requesting the move.
piece	The piece on the game board being moved.

◆ onNextTurnAttempted()

void UrController::onNextTurnAttempted ( PlayerID player )

private

Attempts to end the current turn and move to the next one.

Parameters

player The player requesting the end of the turn.

◆ onViewSubscribed()

void UrController::onViewSubscribed ( const std::string & subscriber )

private

Adds a view which is interested in receiving information about events regarding changes in the state of the game.

Parameters

subscriber A view interested in game-state changes.

◆ onViewUpdatesCompleted()

void UrController::onViewUpdatesCompleted ( const std::string & viewName )

private

The callback, invoked by a subscribed view, where the view reports that it has completed all view changes related to the latest change in game state.

Parameters

viewName The name of the view which has completed its view updates.

◆ viewUpdatesComplete()

bool UrController::viewUpdatesComplete ( ) const

private

Returns whether all the views connected with this controller have reported completion of their updates.

Return values

true	All associated views have reported completion of their updates.
false	One or more views have not reported completion of their updates.

Member Data Documentation

◆ mControlsCreated

uint8_t UrController::mControlsCreated {0}

private

The number of controls connected with this object created over its lifetime.

More than two is an error.

◆ mObserveViewSubscribed

ToyMaker::SignalObserver<const std::string&> UrController::mObserveViewSubscribed

Initial value:

{
        *this, "ViewSubscribedObserved",
        [this](const std::string& viewName) {this->onViewSubscribed(viewName);}
    }

Observer to a signal emitted by views interested in events broadcasted by this object.

◆ mObserveViewUpdateCompleted

ToyMaker::SignalObserver<const std::string&> UrController::mObserveViewUpdateCompleted

Initial value:

{
        *this, "ViewUpdateCompletedObserved",
        [this](const std::string& viewName) { this->onViewUpdatesCompleted(viewName); }
    }

Observer which receives signals from its subscribed views when they report their updates are complete.

◆ mViewUpdated

std::map<std::string, bool> UrController::mViewUpdated {}

private

Flags corresponding with various views subscribed with this object.

All the subscribed views must report that their update has taken place before the controller allows more game events to occur.

The documentation for this class was generated from the following files:

src/app/ur_controller.hpp
src/app/ur_controller.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ clone()

◆ create()

◆ createControls()

◆ getModel()

◆ getSimObjectAspectTypeName()

◆ onActivated()

◆ onDiceRollAttempted()

◆ onLaunchPieceAttempted()

◆ onMoveBoardPieceAttempted()

◆ onNextTurnAttempted()

◆ onViewSubscribed()

◆ onViewUpdatesCompleted()

◆ viewUpdatesComplete()

Member Data Documentation

◆ mControlsCreated

◆ mObserveViewSubscribed

◆ mObserveViewUpdateCompleted

◆ mViewUpdated
