QueryClick Class Reference

The aspect responsible for conducting raycasts and calling pointer event callbacks on eligible objects. More...

#include <query_click.hpp>

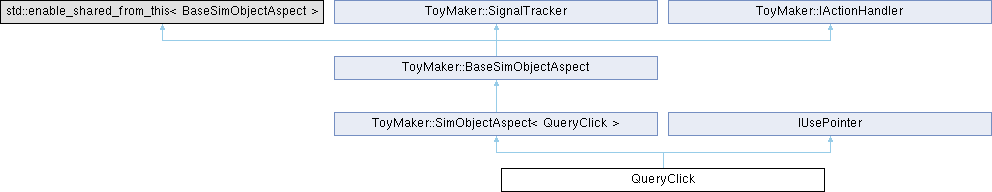

Inheritance diagram for QueryClick:

Public Member Functions
std::shared_ptr< BaseSimObjectAspect >	clone () const override
	Creates a new query click aspect using this one as its blueprint.
Public Member Functions inherited from ToyMaker::BaseSimObjectAspect
virtual	~BaseSimObjectAspect ()=default
	Destroys this object.
virtual void	simulationUpdate (uint32_t simStepMillis)
	Overriding this allows an aspect to respond to simulation updates.
virtual void	variableUpdate (uint32_t variableStepMillis)
	Overriding this allows an aspect to respond to variable updates.
bool	handleAction (const ActionData &actionData, const ActionDefinition &actionDefinition) override final
	Pipes an action received from the InputManager via our SimObject to all that action's handler methods on this aspect.
ViewportNode &	getLocalViewport ()
	Returns the closest ancestor viewport to this node, if one exists (which it should, since this shouldn't be called until this aspect is attached to an active SimObject).
Public Member Functions inherited from ToyMaker::SignalTracker
	SignalTracker ()
	Constructs a new SignalTracker object.
	SignalTracker (const SignalTracker &other)
	Constructs a new SignalTracker.
SignalTracker &	operator= (const SignalTracker &other)
	Copy assignment operator.
	SignalTracker (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, invalidating them from the other.
SignalTracker &	operator= (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, destroying this tracker's resources in the process.
void	connect (const std::string &theirSignal, const std::string &ourObserver, SignalTracker &other)
	Method that connects one of this objects SignalObservers to another tracker's Signal.
Public Member Functions inherited from IUsePointer
	~IUsePointer ()=default
	Virtual IUsePointer destructor, so that subclasses can use their own.

Static Public Member Functions
static std::string	getSimObjectAspectTypeName ()
	Gets the aspect type string associated with this class.
static std::shared_ptr< BaseSimObjectAspect >	create (const nlohmann::json &jsonAspectProperties)
	Creates a query click object based on its description in JSON.

Protected Member Functions
bool	onPointerMove (const ToyMaker::ActionData &actionData, const ToyMaker::ActionDefinition &actionDefinition)
	Method responsible for calling hover callbacks when a pointer move event is received.
bool	onLeftClick (const ToyMaker::ActionData &actionData, const ToyMaker::ActionDefinition &actionDefinition)
	Method responsible for calling left mouse button press callbacks on eligible objects when a pointer click event is received.
bool	onLeftRelease (const ToyMaker::ActionData &actionData, const ToyMaker::ActionDefinition &actionDefinition)
	Method responsible for calling left mouse button release callbacks on eligible objects when a pointer button release event is received.
Protected Member Functions inherited from ToyMaker::SimObjectAspect< QueryClick >
	SimObjectAspect (int explicitlyInitializeMe)
Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
	BaseSimObjectAspect (const BaseSimObjectAspect &other)=delete
	BaseSimObjectAspect (BaseSimObjectAspect &&other)=delete
SimObject &	getSimObject ()
	Returns the sim object that this aspect is attached to.
template<typename TComponent>
void	addComponent (const TComponent &component)
	Adds a component of some type to the underlying entity.
template<typename TComponent>
bool	hasComponent ()
	Tests whether a component of some specific type is present on the object.
template<typename TComponent>
void	updateComponent (const TComponent &component)
	Updates the value of a component belonging to this object to a new one.
template<typename TComponent>
TComponent	getComponent (const float simulationProgress=1.f) const
	Gets the value of a component belonging to this object.
template<typename TComponent>
void	removeComponent ()
	Removes a component of some type belonging to the underlying SimObject.
void	addAspect (const nlohmann::json &jsonAspectProperties)
	Adds a new aspect to the underlying SimObject constructed based on its properties in JSON.
void	addAspect (const BaseSimObjectAspect &aspect)
	Adds a new aspect to the underlying SimObject copied from an already existing aspect.
template<typename TSimObjectAspect>
bool	hasAspect () const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.
bool	hasAspect (const std::string &aspectType) const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.
template<typename TSimObjectAspect>
TSimObjectAspect &	getAspect ()
	Gets an aspect of a particular type belonging to the underlying SimObject.
BaseSimObjectAspect &	getAspect (const std::string &aspectType)
	Gets (a base class reference to) an aspect of a particular type belonging to the underlying SimObject.
template<typename TSimObjectAspect>
void	removeAspect ()
	Removes an aspect from the underlying SimObject.
void	addOrReplaceAspect (const BaseSimObjectAspect &aspect)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed as a copy of another.
void	addOrReplaceAspect (const nlohmann::json &jsonAspectProperties)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed from its JSON description.
std::weak_ptr< FixedActionBinding >	declareFixedActionBinding (const std::string &context, const std::string &action, std::function< bool(const ActionData &, const ActionDefinition &)>)
	Binds some method (or any function) present on this object to an action generated by the InputManager.
EntityID	getEntityID () const
	Gets the ID of the ECSWorld Entity belonging to our SimObject.
std::weak_ptr< ECSWorld >	getWorld () const
	Gets a weak reference to the ECSWorld to which our SimObject's entity belongs.
Protected Member Functions inherited from IUsePointer
bool	leftClickOn (ILeftClickable &clickable, glm::vec4 clickLocation)
	Calls the left mouse button press (or equivalent) callback on an object.
bool	leftReleaseOn (ILeftClickable &clickable, glm::vec4 clickLocation)
	Calls the left mouse button release (or equivalent) callback on an object.
bool	pointerEnter (IHoverable &hoverable, glm::vec4 hoverLocation)
	Callback for when a pointer enters a region containing an object.
bool	pointerLeave (IHoverable &hoverable)
	Callback for when a pointer leaves a region containing an object.

Protected Attributes
std::weak_ptr< ToyMaker::FixedActionBinding >	handlerPointerMove
	The binding connecting the pointer move action to its handler method on this object.
std::weak_ptr< ToyMaker::FixedActionBinding >	handlerLeftClick
	The binding connecting the pointer left click action to its handler method on this object.
std::weak_ptr< ToyMaker::FixedActionBinding >	handlerLeftRelease
	The binding connecting the pointer left release action to its handler method on this object.

Private Member Functions
	QueryClick ()
	Constructs a new Query Click aspect.
ToyMaker::Ray	rayFromClickCoordinates (glm::vec2 clickCoordinates)
	Converts the location of a pointer event from its normalized viewport coordinates to a camera relative ray into the scene.

Private Attributes
std::vector< std::shared_ptr< ToyMaker::SceneNodeCore > >	mPreviousQueryResults {}
	A list of results from previous pointer queries.

Additional Inherited Members
Static Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
template<typename TSimObjectAspectDerived>
static void	registerAspect ()
	Registers an implementation of an aspect with the SimSystem.

Detailed Description

The aspect responsible for conducting raycasts and calling pointer event callbacks on eligible objects.

It has access to object click callbacks through its IUsePointer interface.

Should be attached to a SimObject which is a part of the CameraSystem.

Its appearance in JSON is as follows:

{ "type": "QueryClick" }

Member Function Documentation

clone()

std::shared_ptr< ToyMaker::BaseSimObjectAspect > QueryClick::clone ( ) const

overridevirtual

Creates a new query click aspect using this one as its blueprint.

Returns

std::shared_ptr<BaseSimObjectAspect> The newly constructed query click object.

Implements ToyMaker::BaseSimObjectAspect.

create()

std::shared_ptr< ToyMaker::BaseSimObjectAspect > QueryClick::create ( const nlohmann::json & jsonAspectProperties )

static

Creates a query click object based on its description in JSON.

Parameters

jsonAspectProperties

The json description of this aspect.

Returns

std::shared_ptr<BaseSimObjectAspect> The newly constructed aspect.

getSimObjectAspectTypeName()

static std::string QueryClick::getSimObjectAspectTypeName ( )

inlinestatic

Gets the aspect type string associated with this class.

Returns

std::string The aspect type string for this class.

onLeftClick()

bool QueryClick::onLeftClick ( const ToyMaker::ActionData & actionData, const ToyMaker::ActionDefinition & actionDefinition )

protected

Method responsible for calling left mouse button press callbacks on eligible objects when a pointer click event is received.

Parameters

actionData	The location of the pointer click.
actionDefinition	The definition of the pointer click action.

Return values

true	The action was handled by an object supporting the click callback.
false	The action was not handled by any object.

onLeftRelease()

bool QueryClick::onLeftRelease ( const ToyMaker::ActionData & actionData, const ToyMaker::ActionDefinition & actionDefinition )

protected

Method responsible for calling left mouse button release callbacks on eligible objects when a pointer button release event is received.

Parameters

actionData	The location of the pointer button release event.
actionDefinition	The definition of the pointer button release action.

Return values

true	The pointer button release action was handled by an objects supporting the appropriate callback.
false	The pointer button release action was not handledy by any object.

onPointerMove()

bool QueryClick::onPointerMove ( const ToyMaker::ActionData & actionData, const ToyMaker::ActionDefinition & actionDefinition )

protected

Method responsible for calling hover callbacks when a pointer move event is received.

Parameters

actionData	Pointer move event data.
actionDefinition	Pointer move event definition.

Return values

true	The pointer move event was handled by an object handling hover events.
false	The pointer move event wasn't handled by any object.

rayFromClickCoordinates()

ToyMaker::Ray QueryClick::rayFromClickCoordinates ( glm::vec2 clickCoordinates )

private

Converts the location of a pointer event from its normalized viewport coordinates to a camera relative ray into the scene.

Parameters

clickCoordinates

The normalized coordinates of the pointer relative to this aspect's camera's viewport.

Returns

ToyMaker::Ray The ray constructed from pointer coordinates.

Member Data Documentation

handlerLeftClick

std::weak_ptr<ToyMaker::FixedActionBinding> QueryClick::handlerLeftClick

protected

Initial value:

{
        declareFixedActionBinding(
            "UI",
            "Tap",
            [this](const ToyMaker::ActionData& actionData, const ToyMaker::ActionDefinition& actionDefinition) {
                return this->onLeftClick(actionData, actionDefinition);
            }
        )
    }

The binding connecting the pointer left click action to its handler method on this object.

handlerLeftRelease

std::weak_ptr<ToyMaker::FixedActionBinding> QueryClick::handlerLeftRelease

protected

Initial value:

{
        declareFixedActionBinding(
            "UI",
            "Untap",
            [this](const ToyMaker::ActionData& actionData, const ToyMaker::ActionDefinition& actionDefinition) {
                return this->onLeftRelease(actionData, actionDefinition);
            }
        )
    }

The binding connecting the pointer left release action to its handler method on this object.

handlerPointerMove

std::weak_ptr<ToyMaker::FixedActionBinding> QueryClick::handlerPointerMove

protected

Initial value:

{
        declareFixedActionBinding(
            "UI",
            "PointerMove",
            [this](const ToyMaker::ActionData& actionData, const ToyMaker::ActionDefinition& actionDefinition) {
                return this->onPointerMove(actionData, actionDefinition);
            }
        )
    }

The binding connecting the pointer move action to its handler method on this object.

mPreviousQueryResults

std::vector<std::shared_ptr<ToyMaker::SceneNodeCore> > QueryClick::mPreviousQueryResults {}

private

A list of results from previous pointer queries.

Used in order to compare results from the two most recent frames, to determine whether or not hover events should be fired this frame.

Todo

We're storing shared pointers to nodes in the scene tree here. There's a bug in waiting if we have a reference to a node that was taken off the active scene tree between queries. I don't really know how to think about the problem just now.

---

The documentation for this class was generated from the following files:

• src/app/query_click.hpp
• src/app/query_click.cpp
