ToyMaker::SignalTracker Class Reference

A signal tracker, the main interface between an object and the signal system. More...

#include <signals.hpp>

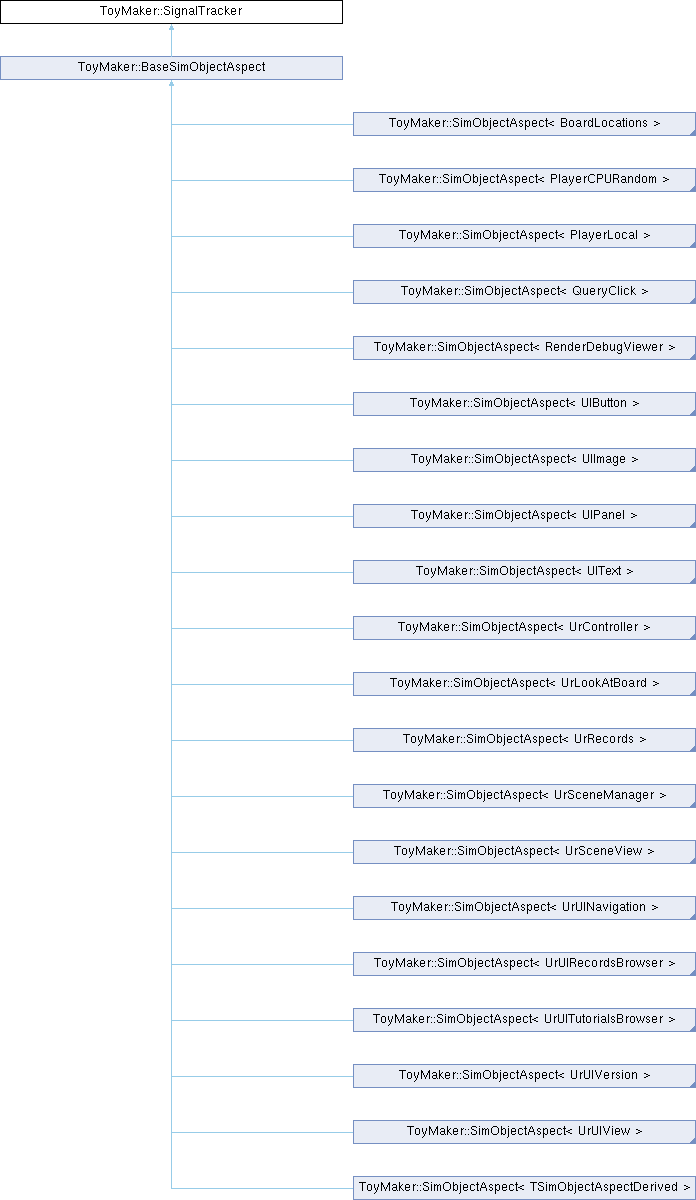

Inheritance diagram for ToyMaker::SignalTracker:

Public Member Functions
	SignalTracker ()
	Constructs a new SignalTracker object.
	SignalTracker (const SignalTracker &other)
	Constructs a new SignalTracker.
SignalTracker &	operator= (const SignalTracker &other)
	Copy assignment operator.
	SignalTracker (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, invalidating them from the other.
SignalTracker &	operator= (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, destroying this tracker's resources in the process.
void	connect (const std::string &theirSignal, const std::string &ourObserver, SignalTracker &other)
	Method that connects one of this objects SignalObservers to another tracker's Signal.

Private Member Functions
template<typename ... TArgs>
std::shared_ptr< Signal_< TArgs... > >	declareSignal (const std::string &signalName)
	Declares a Signal owned by this tracker, and returns a reference to it.
template<typename ... TArgs>
std::shared_ptr< SignalObserver_< TArgs... > >	declareSignalObserver (const std::string &observerName, std::function< void(TArgs...)> callbackFunction)
	Declares a SignalObserver owned by this tracker, returns a reference to it.
void	garbageCollection ()
	A method which removes any signals and observers sitting on this object which were destroyed at some point.

Private Attributes
std::unordered_map< std::string, std::weak_ptr< ISignalObserver > >	mObservers {}
	A list of weak references to this object's SignalObservers, along with their names.
std::unordered_map< std::string, std::weak_ptr< ISignal > >	mSignals {}
	A list of weak references to this object's Signals, along with their names.

Friends
class	ISignal
class	IObserver
template<typename ... TArgs>
class	SignalObserver
template<typename ... TArgs>
class	Signal

Detailed Description

A signal tracker, the main interface between an object and the signal system.

Connections in JSON scene descriptions may appear as follows:

{
    "from": "/viewport_UI/return/@UIButton",
    "signal": "ButtonReleased",

    "to": "/@UrUINavigation",
    "observer": "ButtonClickedObserved"
}

Remarks

SceneNodeCores have a signal tracker member, allowing them to interface with the scene system.

See also

Signal

SignalObserver

Constructor & Destructor Documentation

SignalTracker() [1/2]

SignalTracker::SignalTracker

(

const SignalTracker &

other

)

Constructs a new SignalTracker.

Parameters

other

The object being copied from.

SignalTracker() [2/2]

SignalTracker::SignalTracker

(

SignalTracker &&

other

)

Moves resources from another SignalTracker into this one, invalidating them from the other.

Parameters

other

The tracker whose resources are being claimed.

Member Function Documentation

connect()

void SignalTracker::connect	(	const std::string &	theirSignal,
		const std::string &	ourObserver,
		SignalTracker &	other )

Method that connects one of this objects SignalObservers to another tracker's Signal.

Parameters

theirSignal	The Signal a SignalObserver for this object is being connected to.
ourObserver	Our SignalObserver.
other	The SignalTracker owning the Signal our SignalObserver is trying to subscribe to.

declareSignal()

template<typename ... TArgs>

std::shared_ptr< Signal_< TArgs... > > ToyMaker::SignalTracker::declareSignal ( const std::string & signalName )

inlineprivate

Declares a Signal owned by this tracker, and returns a reference to it.

Template Parameters

TArgs

A list of types of data sent by this object when the declared signal is emitted.

Parameters

signalName

The name of the signal being declared.

Returns

std::shared_ptr<Signal_<TArgs...>> A reference to the newly constructed signal.

declareSignalObserver()

template<typename ... TArgs>

std::shared_ptr< SignalObserver_< TArgs... > > ToyMaker::SignalTracker::declareSignalObserver ( const std::string & observerName, std::function< void(TArgs...)> callbackFunction )

inlineprivate

Declares a SignalObserver owned by this tracker, returns a reference to it.

Template Parameters

TArgs

A list of types of data received by this object when a Signal it is subscribed to is emitted.

Parameters

observerName	The name of the SignalObserver owned by this object.
callbackFunction	A reference to the function to be called by this observer when a Signal is received by it.

Returns

std::shared_ptr<SignalObserver_<TArgs...>> A reference to the newly constructed SignalObserver.

operator=() [1/2]

SignalTracker & SignalTracker::operator=

(

const SignalTracker &

other

)

Copy assignment operator.

Parameters

other

The signal tracker being copied from.

Returns

SignalTracker& The new SignalTracker.

operator=() [2/2]

SignalTracker & SignalTracker::operator=

(

SignalTracker &&

other

)

Moves resources from another SignalTracker into this one, destroying this tracker's resources in the process.

Parameters

other

The tracker whose resources are being stolen.

Returns

SignalTracker& A reference to this tracker with its properties updated.

---

The documentation for this class was generated from the following files:

• src/engine/signals.hpp
• src/engine/signals.cpp
