The core of a node in the SceneSystem, a set of components and methods overridable or usable by all types of scene nodes. More...

#include <scene_system.hpp>

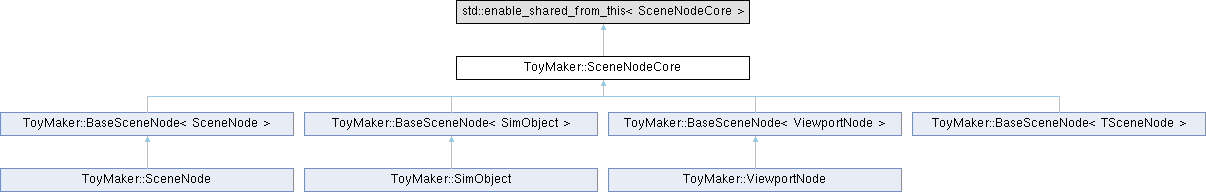

Inheritance diagram for ToyMaker::SceneNodeCore:

Classes
struct	getByPath_Helper
	A helper intended to get scene nodes and related objects attached to the scene tree. More...

struct	getByPath_Helper< BaseSimObjectAspect & >

struct	getByPath_Helper< std::shared_ptr< TObject >, typename std::enable_if_t< std::is_base_of< SceneNodeCore, TObject >::value > >

struct	getByPath_Helper< TAspect &, std::enable_if_t< std::is_base_of< BaseSimObjectAspect, TAspect >::value > >

struct	Key
	A private struct to limit certain sensitive functions to this class and other closely coupled classes. More...

Public Member Functions
virtual	~SceneNodeCore ()=default
	Destroys SceneNodeCore.

template<typename TComponent>
void	addComponent (const TComponent &component, const bool bypassSceneActivityCheck=false)
	Adds a component of type TComponent to the node.

void	addComponent (const nlohmann::json &jsonComponent, const bool bypassSceneActivityCheck=false)
	Adds a component to the node.

template<typename TComponent>
TComponent	getComponent (const float simulationProgress=1.f) const
	Retrieves a component belonging to this node.

template<typename TComponent>
bool	hasComponent () const
	Tests whether this node has a component of a specific type.

bool	hasComponent (const std::string &type) const
	Tests whether this node has a component of a specific type.

template<typename TComponent>
void	updateComponent (const TComponent &component)
	Updates the value of a component of this node (to what it should be at the start of the next simulation step).

void	updateComponent (const nlohmann::json &component)
	Updates the value of a component of this node (to what it should be at the start of the next simulation step).

template<typename TComponent>
void	addOrUpdateComponent (const TComponent &component, const bool bypassSceneActivityCheck=false)
	A method for adding a component or updating a component if that component is already present on this node.

void	addOrUpdateComponent (const nlohmann::json &component, const bool bypassSceneActivityCheck=false)
	A method for adding a component, or updating a component if the same type of component is already present on this node.

template<typename TComponent>
void	removeComponent ()
	Removes a component present on this node.

template<typename TSystem>
void	setEnabled (bool state)
	Sets whether or not a given system should be able to influence this scene object.

template<typename TSystem>
bool	getEnabled () const
	Returns whether a particular system has been enabled for this node.

EntityID	getEntityID () const
	Returns the entity id associated with these scene node.

WorldID	getWorldID () const
	Returns the ID of the ECSWorld this node belongs to.

UniversalEntityID	getUniversalEntityID () const
	Gets the UniversalEntityID aka the world-entity-id pair associated with this node.

std::weak_ptr< ECSWorld >	getWorld () const
	Gets a reference to the ECSWorld this node belongs to.

bool	inScene () const
	Returns whether this node is present as part of the SceneSystem's scene tree.

bool	isActive () const
	Returns whether this node is present as part of the SceneSystem's scene tree, AND is active there as well.

bool	isAncestorOf (std::shared_ptr< const SceneNodeCore > sceneNode) const
	Tests whether a particular scene node is the ancestor of this one.

bool	hasNode (const std::string &pathToChild) const
	Tests whether a node specified by some path relative to this node is a real descendant of this node.

void	addNode (std::shared_ptr< SceneNodeCore > node, const std::string &where)
	Adds a node (or a tree of them) as a child of the node specified by the path in the argument.

std::vector< std::shared_ptr< SceneNodeCore > >	getChildren ()
	Returns a list of all of this node's immediate children scene nodes.

std::vector< std::shared_ptr< const SceneNodeCore > >	getChildren () const
	Returns a list of all of this node's immediate children scene nodes.

std::vector< std::shared_ptr< SceneNodeCore > >	getDescendants ()
	Gets all of the descendant nodes belonging to this scene node.

template<typename TObject = std::shared_ptr<SceneNode>>
TObject	getByPath (const std::string &where)
	Gets a reference to a node or related object by its path.

template<typename TSceneNode = SceneNode>
std::shared_ptr< TSceneNode >	getNodeByID (EntityID entityID)
	Gets a pointer to a node by its EntityID, assuming that node and this one belong to the same ECSWorld.

std::string	getPathFromAncestor (std::shared_ptr< const SceneNodeCore > ancestor) const
	Gets the path from a node (assumed to be an ancestor) to this node.

virtual std::shared_ptr< ViewportNode >	getLocalViewport ()
	Returns the viewport node which is in the same ECSWorld as and is the closest ancestor of (or the same as) this node.

virtual std::shared_ptr< const ViewportNode >	getLocalViewport () const
	Returns (a constant reference to) the viewport node which is in the same ECSWorld as and is the closes ancestor of (or the same as) this node.

std::shared_ptr< SceneNodeCore >	getNode (const std::string &where)
	Gets a reference to a scene node (of any valid type) based on its path relative to this node.

std::shared_ptr< SceneNodeCore >	getParentNode ()
	Gets the parent node of this node, if one is present.

std::shared_ptr< const SceneNodeCore >	getParentNode () const
	Gets (a constant reference to) the parent node of this node, if one is present.

std::shared_ptr< SceneNodeCore >	removeNode (const std::string &where)
	Removes a node from the tree present at the path specified.

std::vector< std::shared_ptr< SceneNodeCore > >	removeChildren ()
	Disconnects and removes all the child nodes attached to this node.

std::string	getName () const
	Returns the name string for this node.

void	setName (const std::string &name)
	Sets the name of this node.

std::string	getViewportLocalPath () const
	Gets the path of this node relative to its local viewport node.

void	setPrototype_ (std::shared_ptr< SceneNodeCore > prototype)
	A reference to the node which was used in order to construct this one.

template<>
void	setEnabled (bool state)

template<>
void	removeComponent ()

template<>
void	removeComponent ()

template<>
void	removeComponent ()

template<>
void	setEnabled (bool)

template<>
void	updateComponent (const AxisAlignedBounds &axisAlignedBoxBounds)

template<>
void	updateComponent (const ObjectBounds &objectBounds)

template<>
void	removeComponent ()

template<>
void	removeComponent ()

Static Public Member Functions
static void	SceneNodeCore_del_ (SceneNodeCore *sceneNode)
	Deleter for a managed pointer to a scene node which ensures its onDestroyed virtual function gets called.

Protected Member Functions
virtual void	joinWorld (ECSWorld &world)
	Removes this node's entity from its current ECSWorld and adds it to a new ECSWorld.

template<typename ... TComponents>
	SceneNodeCore (const Placement &placement, const std::string &name, TComponents...components)
	Constructs a scene node object from essential and extra components.

	SceneNodeCore (const nlohmann::json &jsonSceneNode)
	Constructs a node based on its description of JSON, later verifying that essential components are present.

	SceneNodeCore (const SceneNodeCore &sceneObject)
	Constructs a new node as a copy of another node.

virtual void	onCreated ()
	Copy assignment operator.

virtual void	onActivated ()
	Scene node lifecycle hook for when a node is made an active part of the SceneSystem.

virtual void	onDeactivated ()
	Scene node lifecycle hook for when a node is deactivated on the SceneSystem.

virtual void	onDestroyed ()
	Scene node lifecycle hook for when a node (and possibly its descendants) are about to be destroyed.

Static Protected Member Functions
static std::shared_ptr< SceneNodeCore >	copy (const std::shared_ptr< const SceneNodeCore > other)
	Creates a new scene tree by copying another scene node and its descendants.

static void	validateName (const std::string &nodeName)
	Tests whether a given name is actually valid, throwing an error when it is not.

Private Types
enum	StateFlags : uint8_t { ENABLED =0x1 , ACTIVE =0x2 }
	Flags that indicate whether this node is enabled and active for the SceneSystem.

Private Member Functions
template<typename ... TComponents>
	SceneNodeCore (const Key &, const Placement &placement, const std::string &name, TComponents...components)
	(Private) Constructs a new node based with essential components and some explicitly specified extra ones.

virtual std::shared_ptr< SceneNodeCore >	clone () const
	Virtual method which each type of scene node with special members should implement (in lieu of copy constructors and copy assignment operators.)

void	copyDescendants (const SceneNodeCore &other)
	Copies descendant nodes belonging to another node, attaches the copies to this node.

void	copyAndReplaceAttributes (const SceneNodeCore &other)
	Copies component values from another node and replaces the values on node's components with them.

void	recomputeChildNameIndexMapping ()
	Utility function for updating SceneHierarchyData components belonging to a single ECSWorld in the SceneSystem.

Static Private Member Functions
static void	setParentViewport (std::shared_ptr< SceneNodeCore > node, std::shared_ptr< ViewportNode > newViewport)
	Sets a node as the parent viewport of another one.

static std::shared_ptr< SceneNodeCore >	disconnectNode (std::shared_ptr< SceneNodeCore > node)
	Disconnects this node from its parent node if it has one.

static bool	detectCycle (std::shared_ptr< SceneNodeCore > node)
	Tests whether there are any cycles in the path up to the node's oldest ancestor.

static std::tuple< std::string, std::string >	nextInPath (const std::string &where)
	Strips the root-most part of the path to a node.

Private Attributes
std::string	mName {}
	The name of this scene node.

uint8_t	mStateFlags { 0x00 \| StateFlags::ENABLED }
	Flags indicating the state of this scene node in the scene system.

RelativeTo	mRelativeTo { RelativeTo::PARENT }
	A marker indicating how this node's transform component should be computed.

std::shared_ptr< Entity >	mEntity { nullptr }
	The ECSWorld entity which this node is a wrapper over.

std::weak_ptr< SceneNodeCore >	mParent {}
	A reference to this node's parent scene node.

std::weak_ptr< ViewportNode >	mParentViewport {}
	A reference to this node's parent viewport (whose meaning changes depending on whether this node is a camera, viewport, or other type of node)

std::unordered_map< std::string, std::size_t >	mChildNameToNode {}
	A mapping of names of this node's child nodes to the indices of the nodes themselves.

std::vector< std::shared_ptr< SceneNodeCore > >	mChildren {}
	A list of this node's child nodes.

std::shared_ptr< SceneNodeCore >	mPrototype { nullptr }
	Allows a prototype scene node to be retained as a resource so long as this node is present in memory somewhere.

Signature	mSystemMask {Signature{}.set()}
	A bitset, each position of which indicates whether a system should influence this node when it is part of the SceneSystem's scene tree.

Friends
class	SceneSystem

template<typename TSceneNode>
class	BaseSceneNode

class	ViewportNode

Detailed Description

The core of a node in the SceneSystem, a set of components and methods overridable or usable by all types of scene nodes.

Constructor & Destructor Documentation

◆ ~SceneNodeCore()

virtual ToyMaker::SceneNodeCore::~SceneNodeCore ( )

virtualdefault

Destroys SceneNodeCore.

Mainly, marks this class and its derivatives' destructors as virtual destructors.

◆ SceneNodeCore() [1/4]

template<typename ... TComponents>

ToyMaker::SceneNodeCore::SceneNodeCore	(	const Placement &	placement,
		const std::string &	name,
		TComponents...	components )

protected

Constructs a scene node object from essential and extra components.

Template Parameters

TComponents A list of component types being added to a node in addition to its placement and transform components.

Parameters

placement	The placement component for the newly constructed node.
name	The name to be given to this node.
components	A list of component values to initialize this node's components with.

◆ SceneNodeCore() [2/4]

SceneNodeCore::SceneNodeCore ( const nlohmann::json & jsonSceneNode )

protected

Constructs a node based on its description of JSON, later verifying that essential components are present.

Parameters

jsonSceneNode A description for this node and the initial value of its components.

◆ SceneNodeCore() [3/4]

SceneNodeCore::SceneNodeCore ( const SceneNodeCore & sceneObject )

protected

Constructs a new node as a copy of another node.

Parameters

sceneObject The node being copied.

◆ SceneNodeCore() [4/4]

template<typename ... TComponents>

ToyMaker::SceneNodeCore::SceneNodeCore	(	const Key &	,
		const Placement &	placement,
		const std::string &	name,
		TComponents...	components )

private

(Private) Constructs a new node based with essential components and some explicitly specified extra ones.

Template Parameters

TComponents Additional component types being added to this node.

Parameters

placement	The placement value for this node.
name	The name for this node.
components	The initial values for extra components being added to this node.

Member Function Documentation

◆ addComponent() [1/2]

void SceneNodeCore::addComponent	(	const nlohmann::json &	jsonComponent,
		const bool	bypassSceneActivityCheck = false )

Adds a component to the node.

Parameters

jsonComponent	A description of the node, in JSON, along with its type and initial value.
bypassSceneActivityCheck	Prevents scene activity check when it is known that this node is not visible to the scene system.

◆ addComponent() [2/2]

template<typename TComponent>

void ToyMaker::SceneNodeCore::addComponent	(	const TComponent &	component,
		const bool	bypassSceneActivityCheck = false )

Adds a component of type TComponent to the node.

Template Parameters

TComponent The type of component being added.

Parameters

component	The value of the component added.
bypassSceneActivityCheck	Prevents scene activity check when it is known that this node is not visible to the scene system.

◆ addNode()

void SceneNodeCore::addNode	(	std::shared_ptr< SceneNodeCore >	node,
		const std::string &	where )

Adds a node (or a tree of them) as a child of the node specified by the path in the argument.

Parameters

node	The node being added as a descendant of this node.
where	The path to the node whose immediate child the new node will be.

◆ addOrUpdateComponent() [1/2]

void SceneNodeCore::addOrUpdateComponent	(	const nlohmann::json &	component,
		const bool	bypassSceneActivityCheck = false )

A method for adding a component, or updating a component if the same type of component is already present on this node.

Parameters

component	The description of the component, including its new value and its type.
bypassSceneActivityCheck	Prevents scene activity check when it is known for certain that the node is not part of the scene system.

◆ addOrUpdateComponent() [2/2]

template<typename TComponent>

void ToyMaker::SceneNodeCore::addOrUpdateComponent	(	const TComponent &	component,
		const bool	bypassSceneActivityCheck = false )

A method for adding a component or updating a component if that component is already present on this node.

Template Parameters

TComponent The type of component being added or updated.

Parameters

component	The components new value, as of the start of the next simulation step.
bypassSceneActivityCheck	Prevents scene activity check when it is known for certain that the node is not part of the scene system.

◆ clone()

std::shared_ptr< SceneNodeCore > SceneNodeCore::clone ( ) const

privatevirtual

Virtual method which each type of scene node with special members should implement (in lieu of copy constructors and copy assignment operators.)

Returns: std::shared_ptr<SceneNodeCore> A new node constructed based on this node.

Reimplemented in ToyMaker::SimObject, and ToyMaker::ViewportNode.

◆ copy()

std::shared_ptr< SceneNodeCore > SceneNodeCore::copy ( const std::shared_ptr< const SceneNodeCore > other )

staticprotected

Creates a new scene tree by copying another scene node and its descendants.

Parameters

other The node used as the basis for the construction of a new tree.

Returns: std::shared_ptr<SceneNodeCore> The root node of the newly constructed scene tree.

◆ copyAndReplaceAttributes()

void SceneNodeCore::copyAndReplaceAttributes ( const SceneNodeCore & other )

private

Copies component values from another node and replaces the values on node's components with them.

Parameters

other The node whose component values are being copied.

◆ copyDescendants()

void SceneNodeCore::copyDescendants ( const SceneNodeCore & other )

private

Copies descendant nodes belonging to another node, attaches the copies to this node.

Parameters

other The node whose descendants are being copied.

◆ detectCycle()

bool SceneNodeCore::detectCycle ( std::shared_ptr< SceneNodeCore > node )

staticprivate

Tests whether there are any cycles in the path up to the node's oldest ancestor.

Parameters

node	The node whose path to its root is being tested for cycles.

Return values

true	There is a cycle present in the path to this node's root node.
false	There is no cycle present in the path to this node's root node.

◆ disconnectNode()

std::shared_ptr< SceneNodeCore > SceneNodeCore::disconnectNode ( std::shared_ptr< SceneNodeCore > node )

staticprivate

Disconnects this node from its parent node if it has one.

Parameters

node	The node whose relationship with its parent is being dissolved.

Returns: std::shared_ptr<SceneNodeCore> A reference to the disconnected node, the same one passed as an argument.

◆ getByPath()

template<typename TObject>

TObject ToyMaker::SceneNodeCore::getByPath ( const std::string & where )

Gets a reference to a node or related object by its path.

Template Parameters

TObject The type of object being retrieved, by default a shared pointer to a SceneNode.

Parameters

where The path to the object being retrieved.

Returns: TObject The object retrieved.

◆ getChildren() [1/2]

std::vector< std::shared_ptr< SceneNodeCore > > SceneNodeCore::getChildren ( )

Returns a list of all of this node's immediate children scene nodes.

Returns: std::vector<std::shared_ptr<SceneNodeCore>> A list of this node's immediate children scene nodes.

◆ getChildren() [2/2]

std::vector< std::shared_ptr< const SceneNodeCore > > SceneNodeCore::getChildren ( ) const

Returns a list of all of this node's immediate children scene nodes.

Returns: std::vector<std::shared_ptr<const SceneNodeCore>> A list of (immutable) references to this node's immediate children scene nodes.

◆ getComponent()

template<typename TComponent>

TComponent ToyMaker::SceneNodeCore::getComponent ( const float simulationProgress = 1.f ) const

Retrieves a component belonging to this node.

Template Parameters

TComponent The type of component being retrieved.

Parameters

simulationProgress The progress towards the next simulation state after the previous simulation state as a number between 0 and 1.

Returns: TComponent The retrieved component value.

◆ getDescendants()

std::vector< std::shared_ptr< SceneNodeCore > > SceneNodeCore::getDescendants ( )

Gets all of the descendant nodes belonging to this scene node.

Returns: std::vector<std::shared_ptr<SceneNodeCore>> A list of descendant nodes belonging to this scene node.

◆ getEnabled()

template<typename TSystem>

bool ToyMaker::SceneNodeCore::getEnabled ( ) const

Returns whether a particular system has been enabled for this node.

Template Parameters

TSystem The system whose influence is being tested.

Return values

true	The system has been enabled, and will influence this node when it is a part of the scene;
false	The system has been disabled, and won't influence this node even when it is a part of the scene;

◆ getEntityID()

EntityID SceneNodeCore::getEntityID ( ) const

Returns the entity id associated with these scene node.

Returns: EntityID The ID of the entity associated with this node.

◆ getLocalViewport() [1/2]

std::shared_ptr< ViewportNode > SceneNodeCore::getLocalViewport ( )

virtual

Returns the viewport node which is in the same ECSWorld as and is the closest ancestor of (or the same as) this node.

Returns: std::shared_ptr<ViewportNode> The local viewport node.

Reimplemented in ToyMaker::ViewportNode.

◆ getLocalViewport() [2/2]

std::shared_ptr< const ViewportNode > SceneNodeCore::getLocalViewport ( ) const

virtual

Returns (a constant reference to) the viewport node which is in the same ECSWorld as and is the closes ancestor of (or the same as) this node.

Returns: std::shared_ptr<const ViewportNode> The local viewport node.

Reimplemented in ToyMaker::ViewportNode.

◆ getName()

std::string SceneNodeCore::getName ( ) const

Returns the name string for this node.

Returns: std::string The name of this node.

◆ getNode()

std::shared_ptr< SceneNodeCore > SceneNodeCore::getNode ( const std::string & where )

Gets a reference to a scene node (of any valid type) based on its path relative to this node.

Parameters

where The path to the node being retrieved.

Returns: std::shared_ptr<SceneNodeCore> The retrieved node.

◆ getNodeByID()

template<typename TSceneNode>

std::shared_ptr< TSceneNode > ToyMaker::SceneNodeCore::getNodeByID ( EntityID entityID )

Gets a pointer to a node by its EntityID, assuming that node and this one belong to the same ECSWorld.

Template Parameters

TSceneNode The type of node being retrieved, by default a SceneNode.

Parameters

entityID The id belonging to the entity associated with the node being retrieved.

Returns: std::shared_ptr<TSceneNode> A shared pointer to the node retrieved.

◆ getParentNode() [1/2]

std::shared_ptr< SceneNodeCore > SceneNodeCore::getParentNode ( )

Gets the parent node of this node, if one is present.

Returns: std::shared_ptr<SceneNodeCore> This node's parent node.

◆ getParentNode() [2/2]

std::shared_ptr< const SceneNodeCore > SceneNodeCore::getParentNode ( ) const

Gets (a constant reference to) the parent node of this node, if one is present.

Returns: std::shared_ptr<const SceneNodeCore> This node's parent node.

◆ getPathFromAncestor()

std::string SceneNodeCore::getPathFromAncestor ( std::shared_ptr< const SceneNodeCore > ancestor ) const

Gets the path from a node (assumed to be an ancestor) to this node.

Parameters

ancestor A reference to a node which is an ancestor of this node.

Returns: std::string The path from the ancestor to this node.

◆ getUniversalEntityID()

UniversalEntityID SceneNodeCore::getUniversalEntityID ( ) const

Gets the UniversalEntityID aka the world-entity-id pair associated with this node.

Returns: UniversalEntityID The world-entity-id pair associated with this node.

◆ getViewportLocalPath()

std::string SceneNodeCore::getViewportLocalPath ( ) const

Gets the path of this node relative to its local viewport node.

Returns: std::string The path to this node from its local viewport node.

See also: getLocalViewport()

◆ getWorld()

std::weak_ptr< ECSWorld > SceneNodeCore::getWorld ( ) const

Gets a reference to the ECSWorld this node belongs to.

Returns: std::weak_ptr<ECSWorld> The ECSWorld this node belongs to.

◆ getWorldID()

WorldID SceneNodeCore::getWorldID ( ) const

Returns the ID of the ECSWorld this node belongs to.

Returns: WorldID The ID of the ECSWorld this node belongs to.

◆ hasComponent() [1/2]

template<typename TComponent>

bool ToyMaker::SceneNodeCore::hasComponent ( ) const

Tests whether this node has a component of a specific type.

Template Parameters

TComponent The type of component whose existence is being tested.

Return values

true	This type of component is present for this node;
false	This type of component is absent for this node;

◆ hasComponent() [2/2]

bool SceneNodeCore::hasComponent ( const std::string & type ) const

Tests whether this node has a component of a specific type.

Parameters

type	The component type string of the component whose existence is being tested.

Return values

true	This type of component is present for this node;
false	This type of component is absent for this node;

◆ hasNode()

bool SceneNodeCore::hasNode ( const std::string & pathToChild ) const

Tests whether a node specified by some path relative to this node is a real descendant of this node.

Parameters

pathToChild The path to the descendant node whose existence is being tested.

Return values

true	There is a node present at the path specified;
false	There is no node present at the path specified;

◆ inScene()

bool SceneNodeCore::inScene ( ) const

Returns whether this node is present as part of the SceneSystem's scene tree.

Return values

true	This node is part of the SceneSystem's scene tree.
false	This node is not part of the SceneSystem's scene tree.

Todo: We can't be certain the value returned by this method and the one in the SceneSystem are in sync. Remove this redundancy somehow.

◆ isActive()

bool SceneNodeCore::isActive ( ) const

Returns whether this node is present as part of the SceneSystem's scene tree, AND is active there as well.

Return values

true	This node is present and active in the SceneSystem's scene tree.
false	This node is not present or active in the SceneSystem's scene tree.

Todo: We can't be certain the value returned by this method and the one in the SceneSystem are in sync. Remove this redundancy somehow.

◆ isAncestorOf()

bool SceneNodeCore::isAncestorOf ( std::shared_ptr< const SceneNodeCore > sceneNode ) const

Tests whether a particular scene node is the ancestor of this one.

Parameters

sceneNode The scene node being tested as an ancestor.

Return values

true	The argument node is this node's ancestor;
false	The argument node is not this node's ancestor;

◆ joinWorld()

void SceneNodeCore::joinWorld ( ECSWorld & world )

protectedvirtual

Removes this node's entity from its current ECSWorld and adds it to a new ECSWorld.

Parameters

world The new ECSWorld this node's entity should join.

Reimplemented in ToyMaker::ViewportNode.

◆ nextInPath()

std::tuple< std::string, std::string > SceneNodeCore::nextInPath ( const std::string & where )

staticprivate

Strips the root-most part of the path to a node.

Parameters

where The path before removing its prefix.

Returns: std::tuple<std::string, std::string> - .first - The name of the node (presumably a child of the caller object) relative to which the stripped path is valid; - .second - The path with its prefix removed;

◆ onActivated()

void SceneNodeCore::onActivated ( )

protectedvirtual

Scene node lifecycle hook for when a node is made an active part of the SceneSystem.

Reimplemented in ToyMaker::SimObject, and ToyMaker::ViewportNode.

◆ onCreated()

void SceneNodeCore::onCreated ( )

protectedvirtual

Copy assignment operator.

Todo: Sit down and figure out whether this operator will ever actually need to be used.

Scene node lifecycle hook for when a node is created.

◆ onDeactivated()

void SceneNodeCore::onDeactivated ( )

protectedvirtual

Scene node lifecycle hook for when a node is deactivated on the SceneSystem.

Reimplemented in ToyMaker::SimObject, and ToyMaker::ViewportNode.

◆ onDestroyed()

void SceneNodeCore::onDestroyed ( )

protectedvirtual

Scene node lifecycle hook for when a node (and possibly its descendants) are about to be destroyed.

Todo: Figure out whether this is actually necessary, and why it was we couldn't just use the virtual destructor.

◆ removeChildren()

std::vector< std::shared_ptr< SceneNodeCore > > SceneNodeCore::removeChildren ( )

Disconnects and removes all the child nodes attached to this node.

Returns: std::vector<std::shared_ptr<SceneNodeCore>> A list of child nodes removed.

◆ removeComponent()

template<typename TComponent>

void ToyMaker::SceneNodeCore::removeComponent ( )

Removes a component present on this node.

Template Parameters

TComponent The type of component being removed.

◆ removeNode()

std::shared_ptr< SceneNodeCore > SceneNodeCore::removeNode ( const std::string & where )

Removes a node from the tree present at the path specified.

Parameters

where The path to the node being removed.

Returns: std::shared_ptr<SceneNodeCore> A reference to the removed node.

◆ SceneNodeCore_del_()

void SceneNodeCore::SceneNodeCore_del_ ( SceneNodeCore * sceneNode )

static

Deleter for a managed pointer to a scene node which ensures its onDestroyed virtual function gets called.

Parameters

sceneNode The pointer to the scene node being deleted.

Todo: See whether onDestroyed actually gets called, and whether this function is even necessary given that virtual destructors already exist.

◆ setEnabled()

template<typename TSystem>

void ToyMaker::SceneNodeCore::setEnabled ( bool state )

Sets whether or not a given system should be able to influence this scene object.

If the node hasn't already been made part of the scene, the activation will occur after it has been added to it. Otherwise, the activation occurs right away.

Template Parameters

TSystem The system being enabled or disabled for this node.

Parameters

state Whether to enable or disable a system for this node.

◆ setName()

void SceneNodeCore::setName ( const std::string & name )

Sets the name of this node.

Parameters

name	The new name for this node.

◆ setParentViewport()

void SceneNodeCore::setParentViewport	(	std::shared_ptr< SceneNodeCore >	node,
		std::shared_ptr< ViewportNode >	newViewport )

staticprivate

Sets a node as the parent viewport of another one.

For regular nodes, the side effect would be to move this node's entity and component's into the ECSWorld of its new parent viewport.

Parameters

node	The node whose parent viewport is being set.
newViewport	The node's to-be parent viewport.

◆ setPrototype_()

void ToyMaker::SceneNodeCore::setPrototype_ ( std::shared_ptr< SceneNodeCore > prototype )

inline

A reference to the node which was used in order to construct this one.

May be useful in the future when there is more formal support for the notion of assets.

Parameters

prototype The node that acted as the prototype for this node and its children.

Todo: Think of a safer way to accomplish this.

◆ updateComponent() [1/2]

void SceneNodeCore::updateComponent ( const nlohmann::json & component )

Updates the value of a component of this node (to what it should be at the start of the next simulation step).

Parameters

component A JSON description of the component's new value along with its type.

◆ updateComponent() [2/2]

template<typename TComponent>

void ToyMaker::SceneNodeCore::updateComponent ( const TComponent & component )

Updates the value of a component of this node (to what it should be at the start of the next simulation step).

Template Parameters

TComponent The type of component being updated.

Parameters

component The component's new value.

◆ validateName()

void SceneNodeCore::validateName ( const std::string & nodeName )

staticprotected

Tests whether a given name is actually valid, throwing an error when it is not.

A node should contain letters, numbers, underscores, and should not match kSceneRootName.

Parameters

nodeName The node name whose validity is being asserted.

Member Data Documentation

◆ mChildNameToNode

std::unordered_map<std::string, std::size_t> ToyMaker::SceneNodeCore::mChildNameToNode {}

private

A mapping of names of this node's child nodes to the indices of the nodes themselves.

See also: mChildren

◆ mStateFlags

uint8_t ToyMaker::SceneNodeCore::mStateFlags { 0x00 | StateFlags::ENABLED }

private

Flags indicating the state of this scene node in the scene system.

See also: StateFlags

◆ mSystemMask

Signature ToyMaker::SceneNodeCore::mSystemMask {Signature{}.set()}

private

A bitset, each position of which indicates whether a system should influence this node when it is part of the SceneSystem's scene tree.

See also: SystemManager

The documentation for this class was generated from the following files:

src/engine/scene_system.hpp
src/engine/scene_system.cpp
src/engine/sim_system.hpp
src/engine/spatial_query_system.hpp

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ ~SceneNodeCore()

◆ SceneNodeCore() [1/4]

◆ SceneNodeCore() [2/4]

◆ SceneNodeCore() [3/4]

◆ SceneNodeCore() [4/4]

Member Function Documentation

◆ addComponent() [1/2]

◆ addComponent() [2/2]

◆ addNode()

◆ addOrUpdateComponent() [1/2]

◆ addOrUpdateComponent() [2/2]

◆ clone()

◆ copy()

◆ copyAndReplaceAttributes()

◆ copyDescendants()

◆ detectCycle()

◆ disconnectNode()

◆ getByPath()

◆ getChildren() [1/2]

◆ getChildren() [2/2]

◆ getComponent()

◆ getDescendants()

◆ getEnabled()

◆ getEntityID()

◆ getLocalViewport() [1/2]

◆ getLocalViewport() [2/2]

◆ getName()

◆ getNode()

◆ getNodeByID()

◆ getParentNode() [1/2]

◆ getParentNode() [2/2]

◆ getPathFromAncestor()

◆ getUniversalEntityID()

◆ getViewportLocalPath()

◆ getWorld()

◆ getWorldID()

◆ hasComponent() [1/2]

◆ hasComponent() [2/2]

◆ hasNode()

◆ inScene()

◆ isActive()

◆ isAncestorOf()

◆ joinWorld()

◆ nextInPath()

◆ onActivated()

◆ onCreated()

◆ onDeactivated()

◆ onDestroyed()

◆ removeChildren()

◆ removeComponent()

◆ removeNode()

◆ SceneNodeCore_del_()

◆ setEnabled()

◆ setName()

◆ setParentViewport()

◆ setPrototype_()

◆ updateComponent() [1/2]

◆ updateComponent() [2/2]

◆ validateName()

Member Data Documentation

◆ mChildNameToNode

◆ mStateFlags

◆ mSystemMask
