A wrapper on entity that allows objects in the Scene to be scriptable. More...

#include <sim_system.hpp>

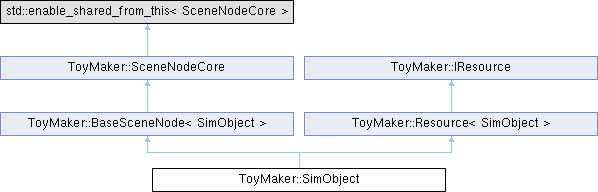

Inheritance diagram for ToyMaker::SimObject:

Public Member Functions
	~SimObject () override
	Detaches all SimObjectAspects from this SimObject before allowing destruction to proceed.

void	addAspect (const nlohmann::json &jsonAspectProperties)
	Constructs and attaches a new SimObjectAspect to this node based on the aspect's description in JSON.

void	addAspect (const BaseSimObjectAspect &simObjectAspect)
	Constructs and attaches a new SimObjectAspect to this node which is a copy of the aspect passed as argument.

template<typename TSimObjectAspect>
bool	hasAspect () const
	Tests whether an aspect of a particular type is attached to this node.

bool	hasAspect (const std::string &aspectType) const
	Tests whether an aspect of a particular type is attached to this node.

template<typename TInterface>
bool	hasAspectWithInterface () const
	Tests whether any aspects implementing some base class are present on this node.

void	addOrReplaceAspect (const BaseSimObjectAspect &simObjectAspect)
	Adds or replaces an aspect for this node.

void	addOrReplaceAspect (const nlohmann::json &jsonAspectProperties)
	Adds or replaces an aspect for this node.

template<typename TSimObjectAspect>
TSimObjectAspect &	getAspect ()
	Gets a reference to a specific aspect present on this node.

BaseSimObjectAspect &	getAspect (const std::string &aspectType)
	Gets (a base class reference to) an aspect present on this node.

template<typename TInterface>
std::vector< std::reference_wrapper< TInterface > >	getAspectsWithInterface ()
	Gets a list of aspects which subclass some base class.

template<typename TSimObjectAspect>
void	removeAspect ()
	Removes an aspect of a certain type from this SimObject.

void	removeAspect (const std::string &aspectType)
	Removes an aspect of a certain type from this SimObject.

template<typename ... TComponents>
	SimObject (const Placement &placement, const std::string &name, TComponents ... components)

Public Member Functions inherited from ToyMaker::SceneNodeCore
virtual	~SceneNodeCore ()=default
	Destroys SceneNodeCore.

template<typename TComponent>
void	addComponent (const TComponent &component, const bool bypassSceneActivityCheck=false)
	Adds a component of type TComponent to the node.

void	addComponent (const nlohmann::json &jsonComponent, const bool bypassSceneActivityCheck=false)
	Adds a component to the node.

template<typename TComponent>
TComponent	getComponent (const float simulationProgress=1.f) const
	Retrieves a component belonging to this node.

template<typename TComponent>
bool	hasComponent () const
	Tests whether this node has a component of a specific type.

bool	hasComponent (const std::string &type) const
	Tests whether this node has a component of a specific type.

template<typename TComponent>
void	updateComponent (const TComponent &component)
	Updates the value of a component of this node (to what it should be at the start of the next simulation step).

void	updateComponent (const nlohmann::json &component)
	Updates the value of a component of this node (to what it should be at the start of the next simulation step).

template<typename TComponent>
void	addOrUpdateComponent (const TComponent &component, const bool bypassSceneActivityCheck=false)
	A method for adding a component or updating a component if that component is already present on this node.

void	addOrUpdateComponent (const nlohmann::json &component, const bool bypassSceneActivityCheck=false)
	A method for adding a component, or updating a component if the same type of component is already present on this node.

template<typename TComponent>
void	removeComponent ()
	Removes a component present on this node.

template<typename TSystem>
void	setEnabled (bool state)
	Sets whether or not a given system should be able to influence this scene object.

template<typename TSystem>
bool	getEnabled () const
	Returns whether a particular system has been enabled for this node.

EntityID	getEntityID () const
	Returns the entity id associated with these scene node.

WorldID	getWorldID () const
	Returns the ID of the ECSWorld this node belongs to.

UniversalEntityID	getUniversalEntityID () const
	Gets the UniversalEntityID aka the world-entity-id pair associated with this node.

std::weak_ptr< ECSWorld >	getWorld () const
	Gets a reference to the ECSWorld this node belongs to.

bool	inScene () const
	Returns whether this node is present as part of the SceneSystem's scene tree.

bool	isActive () const
	Returns whether this node is present as part of the SceneSystem's scene tree, AND is active there as well.

bool	isAncestorOf (std::shared_ptr< const SceneNodeCore > sceneNode) const
	Tests whether a particular scene node is the ancestor of this one.

bool	hasNode (const std::string &pathToChild) const
	Tests whether a node specified by some path relative to this node is a real descendant of this node.

void	addNode (std::shared_ptr< SceneNodeCore > node, const std::string &where)
	Adds a node (or a tree of them) as a child of the node specified by the path in the argument.

std::vector< std::shared_ptr< SceneNodeCore > >	getChildren ()
	Returns a list of all of this node's immediate children scene nodes.

std::vector< std::shared_ptr< const SceneNodeCore > >	getChildren () const
	Returns a list of all of this node's immediate children scene nodes.

std::vector< std::shared_ptr< SceneNodeCore > >	getDescendants ()
	Gets all of the descendant nodes belonging to this scene node.

template<typename TObject = std::shared_ptr<SceneNode>>
TObject	getByPath (const std::string &where)
	Gets a reference to a node or related object by its path.

template<typename TSceneNode = SceneNode>
std::shared_ptr< TSceneNode >	getNodeByID (EntityID entityID)
	Gets a pointer to a node by its EntityID, assuming that node and this one belong to the same ECSWorld.

std::string	getPathFromAncestor (std::shared_ptr< const SceneNodeCore > ancestor) const
	Gets the path from a node (assumed to be an ancestor) to this node.

virtual std::shared_ptr< ViewportNode >	getLocalViewport ()
	Returns the viewport node which is in the same ECSWorld as and is the closest ancestor of (or the same as) this node.

virtual std::shared_ptr< const ViewportNode >	getLocalViewport () const
	Returns (a constant reference to) the viewport node which is in the same ECSWorld as and is the closes ancestor of (or the same as) this node.

std::shared_ptr< SceneNodeCore >	getNode (const std::string &where)
	Gets a reference to a scene node (of any valid type) based on its path relative to this node.

std::shared_ptr< SceneNodeCore >	getParentNode ()
	Gets the parent node of this node, if one is present.

std::shared_ptr< const SceneNodeCore >	getParentNode () const
	Gets (a constant reference to) the parent node of this node, if one is present.

std::shared_ptr< SceneNodeCore >	removeNode (const std::string &where)
	Removes a node from the tree present at the path specified.

std::vector< std::shared_ptr< SceneNodeCore > >	removeChildren ()
	Disconnects and removes all the child nodes attached to this node.

std::string	getName () const
	Returns the name string for this node.

void	setName (const std::string &name)
	Sets the name of this node.

std::string	getViewportLocalPath () const
	Gets the path of this node relative to its local viewport node.

void	setPrototype_ (std::shared_ptr< SceneNodeCore > prototype)
	A reference to the node which was used in order to construct this one.

template<>
void	setEnabled (bool state)

template<>
void	removeComponent ()

template<>
void	removeComponent ()

template<>
void	removeComponent ()

template<>
void	setEnabled (bool)

template<>
void	updateComponent (const AxisAlignedBounds &axisAlignedBoxBounds)

template<>
void	updateComponent (const ObjectBounds &objectBounds)

template<>
void	removeComponent ()

template<>
void	removeComponent ()

Public Member Functions inherited from ToyMaker::Resource< SimObject >
std::string	getResourceTypeName_ () const override
	Get the resource type string for this resource.

Public Member Functions inherited from ToyMaker::IResource
virtual	~IResource ()=default
	Destroy the IResource object.

Static Public Member Functions
static std::string	getResourceTypeName ()
	Gets the resource type string for the SimObject class.

template<typename ... TComponents>
static std::shared_ptr< SimObject >	create (const Placement &placement, const std::string &name, TComponents...components)
	Creates a new SimObject scene node initialized with some placement and component values.

static std::shared_ptr< SimObject >	create (const nlohmann::json &jsonSimObject)
	Creates a SimObject based on its description in JSON.

static std::shared_ptr< SimObject >	copy (const std::shared_ptr< const SimObject > simObject)
	Creates a new SimObject as a copy of another.

Static Public Member Functions inherited from ToyMaker::SceneNodeCore
static void	SceneNodeCore_del_ (SceneNodeCore *sceneNode)
	Deleter for a managed pointer to a scene node which ensures its onDestroyed virtual function gets called.

Protected Member Functions
template<typename ... TComponents>
	SimObject (const Placement &placement, const std::string &name, TComponents...components)

	SimObject (const nlohmann::json &jsonSimObject)

	SimObject (const SimObject &other)

Protected Member Functions inherited from ToyMaker::BaseSceneNode< SimObject >
	BaseSceneNode (const Key &key, const Placement &placement, const std::string &name, TComponents...components)
	Constructor for a single node of a subclass.

	BaseSceneNode (const Placement &placement, const std::string &name, TComponents...components)
	General constructor for a single node of a subclass.

	BaseSceneNode (const nlohmann::json &nodeDescription)
	Constructs a new node of a certain type based on its json description.

	BaseSceneNode (const SceneNodeCore &other)
	Constructs a new node of a certain type as a copy of another node.

Protected Member Functions inherited from ToyMaker::SceneNodeCore
virtual void	joinWorld (ECSWorld &world)
	Removes this node's entity from its current ECSWorld and adds it to a new ECSWorld.

template<typename ... TComponents>
	SceneNodeCore (const Placement &placement, const std::string &name, TComponents...components)
	Constructs a scene node object from essential and extra components.

	SceneNodeCore (const nlohmann::json &jsonSceneNode)
	Constructs a node based on its description of JSON, later verifying that essential components are present.

	SceneNodeCore (const SceneNodeCore &sceneObject)
	Constructs a new node as a copy of another node.

virtual void	onCreated ()
	Copy assignment operator.

virtual void	onDestroyed ()
	Scene node lifecycle hook for when a node (and possibly its descendants) are about to be destroyed.

Protected Member Functions inherited from ToyMaker::Resource< SimObject >
	Resource (int explicitlyInitializeMe)
	Construct a new resource object.

Protected Member Functions inherited from ToyMaker::IResource
	IResource ()=default
	Construct a new IResource object.

Private Member Functions
void	simulationUpdate (uint32_t simStepMillis)
	Copy assignment operator.

void	variableUpdate (uint32_t variableStepMillis)
	Calls aspect variable update hooks for attached aspects.

void	onActivated () override
	Notifies all attached aspects that this scene node has become an active part of the scene.

void	onDeactivated () override
	Notifies all attached aspects that this scene node has stopped being an active part of the scene.

void	copyAspects (const SimObject &other)
	Copies all aspects present on another SimObject onto this one.

std::shared_ptr< SceneNodeCore >	clone () const override
	Copies this scene object returning one containing all the same components and aspects as it.

Private Attributes
std::unordered_map< std::string, std::shared_ptr< BaseSimObjectAspect > >	mSimObjectAspects {}
	Aspect name and pointer pairs for all aspects attached to this SimObject.

Friends
class	SimSystem

class	BaseSimObjectAspect

class	BaseSceneNode< SimObject >

Additional Inherited Members
Static Protected Member Functions inherited from ToyMaker::BaseSceneNode< SimObject >
static std::shared_ptr< SimObject >	create (const Key &, const Placement &placement, const std::string &name, TComponents...components)
	A (private) method for the creation of a new scene node for a particular type.

static std::shared_ptr< SimObject >	create (const Placement &placement, const std::string &name, TComponents...components)
	A method for creating a scene node of a specific type (TSceneNode)

static std::shared_ptr< SimObject >	create (const nlohmann::json &sceneNodeDescription)
	Creates a scene node of a type based on its description in JSON.

static std::shared_ptr< SimObject >	copy (const std::shared_ptr< const SimObject > sceneNode)
	Creates a scene node of a specific type based on another node of that type.

Static Protected Member Functions inherited from ToyMaker::SceneNodeCore
static std::shared_ptr< SceneNodeCore >	copy (const std::shared_ptr< const SceneNodeCore > other)
	Creates a new scene tree by copying another scene node and its descendants.

static void	validateName (const std::string &nodeName)
	Tests whether a given name is actually valid, throwing an error when it is not.

Static Protected Member Functions inherited from ToyMaker::IResource
template<typename TResource>
static void	RegisterResource ()
	Registers this resource as a Resource type with the ResourceDatabase.

Detailed Description

A wrapper on entity that allows objects in the Scene to be scriptable.

This node will track (in addition to components owned by SceneNodeCore) any SimObjectAspects attached to it. It will also ensure that such aspects receive scene object lifecycle and engine related events, which it itself receives from the SimSystem.

The purpose of this is to facilitate the same sort of object-oriented, component-oriented interfaces game developers may be accustomed to in other engines (like Monobehaviours in Unity, GDScript in Godot).

Usage:

An example JSON description of a SimObject, as would be seen in a scene file:

{
    "aspects": [
        { "type": "QueryClick" },
        { "type": "UrLookAtBoard", "offset": [0.0, 1.0, 7.0] }
    ],
    "components": [
        {
            "fov": 55.5,
            "aspect": 1.77778,
            "orthographic_dimensions": {"horizontal": 0, "vertical": 0},
            "near_far_planes": {"near": 0.5, "far": 100},
            "projection_mode": "frustum",
            "type": "CameraProperties"
        },
        {
            "orientation": [
                0.310491145,
                -0.0720598251,
                -0.923300385,
                -0.214287385
            ],
            "position": [
                -6.0,
                8.4,
                6.0,
                1.0
            ],
            "scale": [
                1.0,
                1.0,
                1.0
            ],
            "type": "Placement"
        }
    ],
    "name": "camera",
    "parent": "/viewport_3D/",
    "type": "SimObject"
}

See also: SimObjectAspect; SimSystem

Member Function Documentation

◆ addAspect() [1/2]

void SimObject::addAspect ( const BaseSimObjectAspect & simObjectAspect )

Constructs and attaches a new SimObjectAspect to this node which is a copy of the aspect passed as argument.

Parameters

simObjectAspect The aspect being copied.

◆ addAspect() [2/2]

void SimObject::addAspect ( const nlohmann::json & jsonAspectProperties )

Constructs and attaches a new SimObjectAspect to this node based on the aspect's description in JSON.

Parameters

jsonAspectProperties The SimObjectAspect's JSON description.

◆ addOrReplaceAspect() [1/2]

void SimObject::addOrReplaceAspect ( const BaseSimObjectAspect & simObjectAspect )

Adds or replaces an aspect for this node.

Parameters

simObjectAspect The aspect copied to construct a new aspect.

◆ addOrReplaceAspect() [2/2]

void SimObject::addOrReplaceAspect ( const nlohmann::json & jsonAspectProperties )

Adds or replaces an aspect for this node.

Parameters

jsonAspectProperties A JSON description for the aspect added to this node.

◆ clone()

std::shared_ptr< SceneNodeCore > SimObject::clone ( ) const

overrideprivatevirtual

Copies this scene object returning one containing all the same components and aspects as it.

Returns: std::shared_ptr<SceneNodeCore> The newly constructed SimObject, as a pointer to its base class.

Reimplemented from ToyMaker::SceneNodeCore.

◆ copy()

std::shared_ptr< SimObject > SimObject::copy ( const std::shared_ptr< const SimObject > simObject )

static

Creates a new SimObject as a copy of another.

Parameters

simObject The SimObject being copied.

Returns: std::shared_ptr<SimObject> The newly constructed SimObject.

◆ copyAspects()

void SimObject::copyAspects ( const SimObject & other )

private

Copies all aspects present on another SimObject onto this one.

Parameters

other An object whose aspects are being copied.

◆ create() [1/2]

std::shared_ptr< SimObject > SimObject::create ( const nlohmann::json & jsonSimObject )

static

Creates a SimObject based on its description in JSON.

Parameters

jsonSimObject A JSON description for this SimObject, including initial component values.

Returns: std::shared_ptr<SimObject> The newly constructed SimObject value.

◆ create() [2/2]

template<typename ... TComponents>

std::shared_ptr< SimObject > ToyMaker::SimObject::create	(	const Placement &	placement,
		const std::string &	name,
		TComponents...	components )

static

Creates a new SimObject scene node initialized with some placement and component values.

Template Parameters

TComponents The types of components being initialized for this node's entity.

Parameters

placement	This node's initial Placement value.
name	The name for this node in the scene hierarchy.
components	The values of other components being initialized for this node.

Returns: std::shared_ptr<SimObject> The newly created SimObjectAspect.

◆ getAspect() [1/2]

template<typename TSimObjectAspect>

TSimObjectAspect & ToyMaker::SimObject::getAspect ( )

Gets a reference to a specific aspect present on this node.

Template Parameters

TSimObjectAspect The type of the aspect being fetched.

Returns: TSimObjectAspect& The fetched aspect.

◆ getAspect() [2/2]

BaseSimObjectAspect & SimObject::getAspect ( const std::string & aspectType )

Gets (a base class reference to) an aspect present on this node.

Parameters

aspectType The aspect type string for the asset being fetched.

Returns: BaseSimObjectAspect& The fetched aspect.

◆ getAspectsWithInterface()

template<typename TInterface>

std::vector< std::reference_wrapper< TInterface > > ToyMaker::SimObject::getAspectsWithInterface ( )

Gets a list of aspects which subclass some base class.

Template Parameters

TInterface The class implemented by fetched aspects.

Returns: std::vector<std::reference_wrapper<TInterface>> A list of aspects implementing TInterface, by their base class references.

◆ getResourceTypeName()

static std::string ToyMaker::SimObject::getResourceTypeName ( )

inlinestatic

Gets the resource type string for the SimObject class.

Returns: std::string The resource type string for this class.

◆ hasAspect() [1/2]

template<typename TSimObjectAspect>

bool ToyMaker::SimObject::hasAspect ( ) const

Tests whether an aspect of a particular type is attached to this node.

Template Parameters

TSimObjectAspect The type of aspect whose presence is being tested.

Return values

true	The aspect is present;
false	The aspect is absent;

◆ hasAspect() [2/2]

bool SimObject::hasAspect ( const std::string & aspectType ) const

Tests whether an aspect of a particular type is attached to this node.

Parameters

aspectType The aspect type string of the aspect whose presence is being tested.

Return values

true	The aspect is present;
false	The aspect is absent;

◆ hasAspectWithInterface()

template<typename TInterface>

bool ToyMaker::SimObject::hasAspectWithInterface ( ) const

Tests whether any aspects implementing some base class are present on this node.

Template Parameters

TInterface The base class an aspect of this class, possibly.

Return values

true	An aspect implementing TInterface is present;
false	No aspect implementing TInterface is present;

◆ onActivated()

void SimObject::onActivated ( )

overrideprivatevirtual

Notifies all attached aspects that this scene node has become an active part of the scene.

See also: BaseSimObjectAspect::onActivated()

Reimplemented from ToyMaker::SceneNodeCore.

◆ onDeactivated()

void SimObject::onDeactivated ( )

overrideprivatevirtual

Notifies all attached aspects that this scene node has stopped being an active part of the scene.

See also: BaseSimObjectAspect::onDeactivated()

Reimplemented from ToyMaker::SceneNodeCore.

◆ removeAspect() [1/2]

template<typename TSimObjectAspect>

void ToyMaker::SimObject::removeAspect ( )

Removes an aspect of a certain type from this SimObject.

Template Parameters

TSimObjectAspect The type of aspect being removed.

◆ removeAspect() [2/2]

void SimObject::removeAspect ( const std::string & aspectType )

Removes an aspect of a certain type from this SimObject.

Parameters

aspectType The aspect type string of the asset being removed.

◆ simulationUpdate()

void SimObject::simulationUpdate ( uint32_t simStepMillis )

private

Copy assignment operator.

Todo: Figure out whether this operator will actually ever be useful.

Calls aspect simulation update hooks for attached aspects.

Parameters

simStepMillis The time by which the simulation is to be advanced.

◆ variableUpdate()

void SimObject::variableUpdate ( uint32_t variableStepMillis )

private

Calls aspect variable update hooks for attached aspects.

Parameters

variableStepMillis The time since the computation of the last frame.

The documentation for this class was generated from the following files:

src/engine/sim_system.hpp
src/engine/sim_system.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Usage:

Member Function Documentation

◆ addAspect() [1/2]

◆ addAspect() [2/2]

◆ addOrReplaceAspect() [1/2]

◆ addOrReplaceAspect() [2/2]

◆ clone()

◆ copy()

◆ copyAspects()

◆ create() [1/2]

◆ create() [2/2]

◆ getAspect() [1/2]

◆ getAspect() [2/2]

◆ getAspectsWithInterface()

◆ getResourceTypeName()

◆ hasAspect() [1/2]

◆ hasAspect() [2/2]

◆ hasAspectWithInterface()

◆ onActivated()

◆ onDeactivated()

◆ removeAspect() [1/2]

◆ removeAspect() [2/2]

◆ simulationUpdate()

◆ variableUpdate()
