UrUIView Class Reference

The aspect class for the UI layer of the game scene. More...

#include <ur_ui_view.hpp>

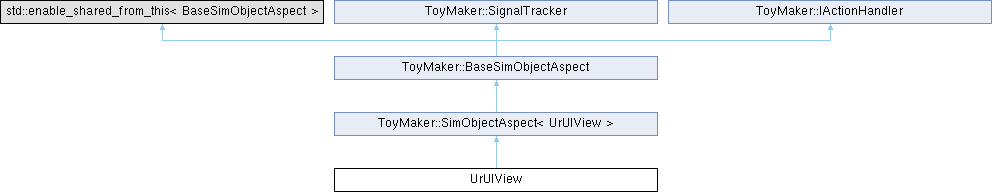

Inheritance diagram for UrUIView:

Public Member Functions
std::shared_ptr< BaseSimObjectAspect >	clone () const override
	A method which must be overridden to specify how a new aspect should be constructed as a copy of this one.
void	onActivated () override
	Callback for when the aspect is activated (after it is attached to an active SimObject, or if the SimObject it was attached to has just been activated)
void	variableUpdate (uint32_t timeStep) override
	Overriding this allows an aspect to respond to variable updates.
const GameOfUrModel &	getModel () const
Public Member Functions inherited from ToyMaker::BaseSimObjectAspect
virtual	~BaseSimObjectAspect ()=default
	Destroys this object.
virtual void	simulationUpdate (uint32_t simStepMillis)
	Overriding this allows an aspect to respond to simulation updates.
bool	handleAction (const ActionData &actionData, const ActionDefinition &actionDefinition) override final
	Pipes an action received from the InputManager via our SimObject to all that action's handler methods on this aspect.
ViewportNode &	getLocalViewport ()
	Returns the closest ancestor viewport to this node, if one exists (which it should, since this shouldn't be called until this aspect is attached to an active SimObject).
Public Member Functions inherited from ToyMaker::SignalTracker
	SignalTracker ()
	Constructs a new SignalTracker object.
	SignalTracker (const SignalTracker &other)
	Constructs a new SignalTracker.
SignalTracker &	operator= (const SignalTracker &other)
	Copy assignment operator.
	SignalTracker (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, invalidating them from the other.
SignalTracker &	operator= (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, destroying this tracker's resources in the process.
void	connect (const std::string &theirSignal, const std::string &ourObserver, SignalTracker &other)
	Method that connects one of this objects SignalObservers to another tracker's Signal.

Static Public Member Functions
static std::string	getSimObjectAspectTypeName ()
static std::shared_ptr< BaseSimObjectAspect >	create (const nlohmann::json &jsonAspectProperties)

Public Attributes
ToyMaker::SignalObserver< const std::string & >	mObserveButtonClicked
ToyMaker::SignalObserver< GamePhaseData >	mObservePhaseUpdated
ToyMaker::SignalObserver< GameScoreData >	mObserveScoreUpdated
ToyMaker::SignalObserver< PlayerData >	mObservePlayerUpdated
ToyMaker::SignalObserver< DiceData >	mObserveDiceUpdated
ToyMaker::SignalObserver< MoveResultData >	mObserveMoveMade
ToyMaker::SignalObserver< PlayerID >	mObserveControlInterface
ToyMaker::Signal	mSigDiceRollAttempted { *this, "DiceRollAttempted" }
ToyMaker::Signal	mSigNextTurnAttempted { *this, "NextTurnAttempted" }
ToyMaker::Signal< PieceTypeID >	mSigLaunchPieceInitiated { *this, "LaunchPieceInitiated" }
ToyMaker::Signal	mSigLaunchPieceCanceled { *this, "LaunchPieceCanceled" }
ToyMaker::SignalObserver	mObserveControllerReady
ToyMaker::Signal< std::string >	mSigViewSubscribed {*this, "ViewSubscribed"}
ToyMaker::SignalObserver	mObserveViewUpdateStarted
ToyMaker::Signal< std::string >	mSigViewUpdateCompleted

Private Types
enum	Buttons {   SWALLOW =PieceTypeID::SWALLOW , STORMBIRD =PieceTypeID::STORMBIRD , RAVEN =PieceTypeID::RAVEN , ROOSTER =PieceTypeID::ROOSTER ,   EAGLE =PieceTypeID::EAGLE , NEXT_TURN , DICE }
enum class	Mode { INTERACT , TRANSITION }

Private Member Functions
void	onControllerReady ()
void	updateText (const std::string &path, const std::string &text)
void	reactivateControls ()
void	onButtonClicked (const std::string &button)
void	onPhaseUpdated (GamePhaseData phase)
void	onScoreUpdated (GameScoreData score)
void	onPlayerUpdated (PlayerData player)
void	onDiceUpdated (DiceData dice)
void	onViewUpdateStarted ()
void	onMoveMade (MoveResultData moveData)
void	onControlInterface (PlayerID playerID)
bool	onCancel (const ToyMaker::ActionData &actionData, const ToyMaker::ActionDefinition &actionDefinition)
std::shared_ptr< ToyMaker::SimObject >	getLaunchButton (PieceTypeID pieceTypeID, PlayerID player)
std::shared_ptr< ToyMaker::SceneNode >	getPlayerPanel (PlayerID player)
std::shared_ptr< ToyMaker::SimObject >	getEndTurnButton ()

Private Attributes
std::weak_ptr< ToyMaker::SimObject >	mGameOfUrController {}
std::string	mControllerPath {}
PlayerID	mControlledBy {}
Mode	mMode { Mode::INTERACT }
std::vector< std::reference_wrapper< UIText > >	mUpdatedTextElements {}
uint32_t	mAnimationTimeMillis { 0 }
uint32_t	mBlinkLengthMillis { 2500 }
uint32_t	mBlinkPeriodMillis { 400 }
std::weak_ptr< ToyMaker::FixedActionBinding >	handleCancel

Static Private Attributes
static const std::map< std::string, Buttons >	kButtonEnumMap

Additional Inherited Members
Protected Member Functions inherited from ToyMaker::SimObjectAspect< UrUIView >
	SimObjectAspect (int explicitlyInitializeMe)
Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
	BaseSimObjectAspect (const BaseSimObjectAspect &other)=delete
	BaseSimObjectAspect (BaseSimObjectAspect &&other)=delete
SimObject &	getSimObject ()
	Returns the sim object that this aspect is attached to.
template<typename TComponent>
void	addComponent (const TComponent &component)
	Adds a component of some type to the underlying entity.
template<typename TComponent>
bool	hasComponent ()
	Tests whether a component of some specific type is present on the object.
template<typename TComponent>
void	updateComponent (const TComponent &component)
	Updates the value of a component belonging to this object to a new one.
template<typename TComponent>
TComponent	getComponent (const float simulationProgress=1.f) const
	Gets the value of a component belonging to this object.
template<typename TComponent>
void	removeComponent ()
	Removes a component of some type belonging to the underlying SimObject.
void	addAspect (const nlohmann::json &jsonAspectProperties)
	Adds a new aspect to the underlying SimObject constructed based on its properties in JSON.
void	addAspect (const BaseSimObjectAspect &aspect)
	Adds a new aspect to the underlying SimObject copied from an already existing aspect.
template<typename TSimObjectAspect>
bool	hasAspect () const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.
bool	hasAspect (const std::string &aspectType) const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.
template<typename TSimObjectAspect>
TSimObjectAspect &	getAspect ()
	Gets an aspect of a particular type belonging to the underlying SimObject.
BaseSimObjectAspect &	getAspect (const std::string &aspectType)
	Gets (a base class reference to) an aspect of a particular type belonging to the underlying SimObject.
template<typename TSimObjectAspect>
void	removeAspect ()
	Removes an aspect from the underlying SimObject.
void	addOrReplaceAspect (const BaseSimObjectAspect &aspect)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed as a copy of another.
void	addOrReplaceAspect (const nlohmann::json &jsonAspectProperties)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed from its JSON description.
std::weak_ptr< FixedActionBinding >	declareFixedActionBinding (const std::string &context, const std::string &action, std::function< bool(const ActionData &, const ActionDefinition &)>)
	Binds some method (or any function) present on this object to an action generated by the InputManager.
EntityID	getEntityID () const
	Gets the ID of the ECSWorld Entity belonging to our SimObject.
std::weak_ptr< ECSWorld >	getWorld () const
	Gets a weak reference to the ECSWorld to which our SimObject's entity belongs.
Static Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
template<typename TSimObjectAspectDerived>
static void	registerAspect ()
	Registers an implementation of an aspect with the SimSystem.

Detailed Description

The aspect class for the UI layer of the game scene.

Converts UI interactions into game actions sent to the active player controller. Partially displays information about the current state of the game, as reported by the game data model or UrController.

Member Function Documentation

clone()

std::shared_ptr< ToyMaker::BaseSimObjectAspect > UrUIView::clone ( ) const

overridevirtual

A method which must be overridden to specify how a new aspect should be constructed as a copy of this one.

Returns

std::shared_ptr<BaseSimObjectAspect> The newly constructed aspect.

Implements ToyMaker::BaseSimObjectAspect.

onActivated()

void UrUIView::onActivated ( )

overridevirtual

Callback for when the aspect is activated (after it is attached to an active SimObject, or if the SimObject it was attached to has just been activated)

Reimplemented from ToyMaker::BaseSimObjectAspect.

variableUpdate()

void UrUIView::variableUpdate ( uint32_t variableStepMillis )

overridevirtual

Overriding this allows an aspect to respond to variable updates.

Parameters

variableStepMillis

The time since the execution of the last frame, in milliseconds.

See also

SceneSystem::variableStep

Reimplemented from ToyMaker::BaseSimObjectAspect.

Member Data Documentation

handleCancel

std::weak_ptr<ToyMaker::FixedActionBinding> UrUIView::handleCancel

private

Initial value:

{ declareFixedActionBinding(
        "General", "Cancel", [this](const ToyMaker::ActionData& actionData, const ToyMaker::ActionDefinition& actionDefinition) {
            return this->onCancel(actionData, actionDefinition);
        }
    )}

kButtonEnumMap

const std::map< std::string, UrUIView::Buttons > UrUIView::kButtonEnumMap

staticprivate

Initial value:

{
    {"swallow", UrUIView::Buttons::SWALLOW},
    {"storm_bird", UrUIView::Buttons::STORMBIRD},
    {"raven", UrUIView::Buttons::RAVEN},
    {"rooster", UrUIView::Buttons::ROOSTER},
    {"eagle", UrUIView::Buttons::EAGLE},

    {"dice_roll", UrUIView::Buttons::DICE},
    {"next_turn", UrUIView::Buttons::NEXT_TURN},
}

mObserveButtonClicked

ToyMaker::SignalObserver<const std::string&> UrUIView::mObserveButtonClicked

Initial value:

{
        *this, "ButtonClickedObserved",
        [this](const std::string& button) { this->onButtonClicked(button); }
    }

mObserveControlInterface

ToyMaker::SignalObserver<PlayerID> UrUIView::mObserveControlInterface

Initial value:

{
        *this, "ControlInterfaceObserved",
        [this](PlayerID playerID) { this->onControlInterface(playerID); }
    }

mObserveControllerReady

ToyMaker::SignalObserver UrUIView::mObserveControllerReady

Initial value:

{
        *this, "ControllerReadyObserved",
        [this]() {this->onControllerReady();}
    }

mObserveDiceUpdated

ToyMaker::SignalObserver<DiceData> UrUIView::mObserveDiceUpdated

Initial value:

{
        *this, "DiceUpdatedObserved",
        [this](DiceData diceData) { this->onDiceUpdated(diceData); }
    }

mObserveMoveMade

ToyMaker::SignalObserver<MoveResultData> UrUIView::mObserveMoveMade

Initial value:

{
        *this, "MoveMadeObserved",
        [this](MoveResultData moveData) { this->onMoveMade(moveData); }
    }

mObservePhaseUpdated

ToyMaker::SignalObserver<GamePhaseData> UrUIView::mObservePhaseUpdated

Initial value:

{
        *this, "PhaseUpdatedObserved",
        [this](GamePhaseData phaseData) { this->onPhaseUpdated(phaseData); }
    }

mObservePlayerUpdated

ToyMaker::SignalObserver<PlayerData> UrUIView::mObservePlayerUpdated

Initial value:

{
        *this, "PlayerUpdatedObserved",
        [this](PlayerData playerData) { this->onPlayerUpdated(playerData); }
    }

mObserveScoreUpdated

ToyMaker::SignalObserver<GameScoreData> UrUIView::mObserveScoreUpdated

Initial value:

{
        *this, "ScoreUpdatedObserved",
        [this](GameScoreData scoreData) { this->onScoreUpdated(scoreData); }
    }

mObserveViewUpdateStarted

ToyMaker::SignalObserver UrUIView::mObserveViewUpdateStarted

Initial value:

{
        *this, "ViewUpdateStartedObserved",
        [this](){ this->onViewUpdateStarted(); }
    }

mSigViewUpdateCompleted

ToyMaker::Signal<std::string> UrUIView::mSigViewUpdateCompleted

Initial value:

{
        *this, "ViewUpdateCompleted"
    }

---

The documentation for this class was generated from the following files:

• src/app/ur_ui_view.hpp
• src/app/ur_ui_view.cpp
