The most basic vanilla flavour of scene node comprised of no more than a name and some components. More...

#include <scene_system.hpp>

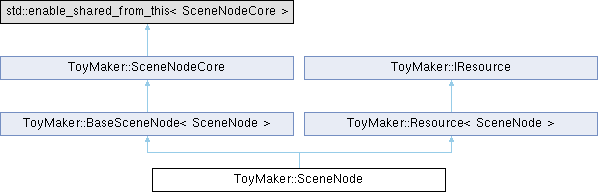

Inheritance diagram for ToyMaker::SceneNode:

Static Public Member Functions
template<typename ... TComponents>
static std::shared_ptr< SceneNode >	create (const Placement &placement, const std::string &name, TComponents...components)

static std::shared_ptr< SceneNode >	create (const nlohmann::json &sceneNodeDescription)

static std::shared_ptr< SceneNode >	copy (const std::shared_ptr< const SceneNode > other)

static std::string	getResourceTypeName ()

Static Public Member Functions inherited from ToyMaker::SceneNodeCore
static void	SceneNodeCore_del_ (SceneNodeCore *sceneNode)
	Deleter for a managed pointer to a scene node which ensures its onDestroyed virtual function gets called.

Protected Member Functions
template<typename ... TComponents>
	SceneNode (const Placement &placement, const std::string &name, TComponents...components)

	SceneNode (const nlohmann::json &jsonSceneNode)

	SceneNode (const SceneNode &sceneObject)

Protected Member Functions inherited from ToyMaker::BaseSceneNode< SceneNode >
	BaseSceneNode (const Key &key, const Placement &placement, const std::string &name, TComponents...components)
	Constructor for a single node of a subclass.

	BaseSceneNode (const Placement &placement, const std::string &name, TComponents...components)
	General constructor for a single node of a subclass.

	BaseSceneNode (const nlohmann::json &nodeDescription)
	Constructs a new node of a certain type based on its json description.

	BaseSceneNode (const SceneNodeCore &other)
	Constructs a new node of a certain type as a copy of another node.

Protected Member Functions inherited from ToyMaker::SceneNodeCore
virtual void	joinWorld (ECSWorld &world)
	Removes this node's entity from its current ECSWorld and adds it to a new ECSWorld.

template<typename ... TComponents>
	SceneNodeCore (const Placement &placement, const std::string &name, TComponents...components)
	Constructs a scene node object from essential and extra components.

	SceneNodeCore (const nlohmann::json &jsonSceneNode)
	Constructs a node based on its description of JSON, later verifying that essential components are present.

	SceneNodeCore (const SceneNodeCore &sceneObject)
	Constructs a new node as a copy of another node.

virtual void	onCreated ()
	Copy assignment operator.

virtual void	onActivated ()
	Scene node lifecycle hook for when a node is made an active part of the SceneSystem.

virtual void	onDeactivated ()
	Scene node lifecycle hook for when a node is deactivated on the SceneSystem.

virtual void	onDestroyed ()
	Scene node lifecycle hook for when a node (and possibly its descendants) are about to be destroyed.

Protected Member Functions inherited from ToyMaker::Resource< SceneNode >
	Resource (int explicitlyInitializeMe)
	Construct a new resource object.

Protected Member Functions inherited from ToyMaker::IResource
	IResource ()=default
	Construct a new IResource object.

Friends
class	BaseSceneNode< SceneNode >

Additional Inherited Members
Public Member Functions inherited from ToyMaker::SceneNodeCore
virtual	~SceneNodeCore ()=default
	Destroys SceneNodeCore.

template<typename TComponent>
void	addComponent (const TComponent &component, const bool bypassSceneActivityCheck=false)
	Adds a component of type TComponent to the node.

void	addComponent (const nlohmann::json &jsonComponent, const bool bypassSceneActivityCheck=false)
	Adds a component to the node.

template<typename TComponent>
TComponent	getComponent (const float simulationProgress=1.f) const
	Retrieves a component belonging to this node.

template<typename TComponent>
bool	hasComponent () const
	Tests whether this node has a component of a specific type.

bool	hasComponent (const std::string &type) const
	Tests whether this node has a component of a specific type.

template<typename TComponent>
void	updateComponent (const TComponent &component)
	Updates the value of a component of this node (to what it should be at the start of the next simulation step).

void	updateComponent (const nlohmann::json &component)
	Updates the value of a component of this node (to what it should be at the start of the next simulation step).

template<typename TComponent>
void	addOrUpdateComponent (const TComponent &component, const bool bypassSceneActivityCheck=false)
	A method for adding a component or updating a component if that component is already present on this node.

void	addOrUpdateComponent (const nlohmann::json &component, const bool bypassSceneActivityCheck=false)
	A method for adding a component, or updating a component if the same type of component is already present on this node.

template<typename TComponent>
void	removeComponent ()
	Removes a component present on this node.

template<typename TSystem>
void	setEnabled (bool state)
	Sets whether or not a given system should be able to influence this scene object.

template<typename TSystem>
bool	getEnabled () const
	Returns whether a particular system has been enabled for this node.

EntityID	getEntityID () const
	Returns the entity id associated with these scene node.

WorldID	getWorldID () const
	Returns the ID of the ECSWorld this node belongs to.

UniversalEntityID	getUniversalEntityID () const
	Gets the UniversalEntityID aka the world-entity-id pair associated with this node.

std::weak_ptr< ECSWorld >	getWorld () const
	Gets a reference to the ECSWorld this node belongs to.

bool	inScene () const
	Returns whether this node is present as part of the SceneSystem's scene tree.

bool	isActive () const
	Returns whether this node is present as part of the SceneSystem's scene tree, AND is active there as well.

bool	isAncestorOf (std::shared_ptr< const SceneNodeCore > sceneNode) const
	Tests whether a particular scene node is the ancestor of this one.

bool	hasNode (const std::string &pathToChild) const
	Tests whether a node specified by some path relative to this node is a real descendant of this node.

void	addNode (std::shared_ptr< SceneNodeCore > node, const std::string &where)
	Adds a node (or a tree of them) as a child of the node specified by the path in the argument.

std::vector< std::shared_ptr< SceneNodeCore > >	getChildren ()
	Returns a list of all of this node's immediate children scene nodes.

std::vector< std::shared_ptr< const SceneNodeCore > >	getChildren () const
	Returns a list of all of this node's immediate children scene nodes.

std::vector< std::shared_ptr< SceneNodeCore > >	getDescendants ()
	Gets all of the descendant nodes belonging to this scene node.

template<typename TObject = std::shared_ptr<SceneNode>>
TObject	getByPath (const std::string &where)
	Gets a reference to a node or related object by its path.

template<typename TSceneNode = SceneNode>
std::shared_ptr< TSceneNode >	getNodeByID (EntityID entityID)
	Gets a pointer to a node by its EntityID, assuming that node and this one belong to the same ECSWorld.

std::string	getPathFromAncestor (std::shared_ptr< const SceneNodeCore > ancestor) const
	Gets the path from a node (assumed to be an ancestor) to this node.

virtual std::shared_ptr< ViewportNode >	getLocalViewport ()
	Returns the viewport node which is in the same ECSWorld as and is the closest ancestor of (or the same as) this node.

virtual std::shared_ptr< const ViewportNode >	getLocalViewport () const
	Returns (a constant reference to) the viewport node which is in the same ECSWorld as and is the closes ancestor of (or the same as) this node.

std::shared_ptr< SceneNodeCore >	getNode (const std::string &where)
	Gets a reference to a scene node (of any valid type) based on its path relative to this node.

std::shared_ptr< SceneNodeCore >	getParentNode ()
	Gets the parent node of this node, if one is present.

std::shared_ptr< const SceneNodeCore >	getParentNode () const
	Gets (a constant reference to) the parent node of this node, if one is present.

std::shared_ptr< SceneNodeCore >	removeNode (const std::string &where)
	Removes a node from the tree present at the path specified.

std::vector< std::shared_ptr< SceneNodeCore > >	removeChildren ()
	Disconnects and removes all the child nodes attached to this node.

std::string	getName () const
	Returns the name string for this node.

void	setName (const std::string &name)
	Sets the name of this node.

std::string	getViewportLocalPath () const
	Gets the path of this node relative to its local viewport node.

void	setPrototype_ (std::shared_ptr< SceneNodeCore > prototype)
	A reference to the node which was used in order to construct this one.

template<>
void	setEnabled (bool state)

template<>
void	removeComponent ()

template<>
void	removeComponent ()

template<>
void	removeComponent ()

template<>
void	setEnabled (bool)

template<>
void	updateComponent (const AxisAlignedBounds &axisAlignedBoxBounds)

template<>
void	updateComponent (const ObjectBounds &objectBounds)

template<>
void	removeComponent ()

template<>
void	removeComponent ()

Public Member Functions inherited from ToyMaker::Resource< SceneNode >
std::string	getResourceTypeName_ () const override
	Get the resource type string for this resource.

Public Member Functions inherited from ToyMaker::IResource
virtual	~IResource ()=default
	Destroy the IResource object.

Static Protected Member Functions inherited from ToyMaker::BaseSceneNode< SceneNode >
static std::shared_ptr< SceneNode >	create (const Key &, const Placement &placement, const std::string &name, TComponents...components)
	A (private) method for the creation of a new scene node for a particular type.

static std::shared_ptr< SceneNode >	create (const Placement &placement, const std::string &name, TComponents...components)
	A method for creating a scene node of a specific type (TSceneNode)

static std::shared_ptr< SceneNode >	create (const nlohmann::json &sceneNodeDescription)
	Creates a scene node of a type based on its description in JSON.

static std::shared_ptr< SceneNode >	copy (const std::shared_ptr< const SceneNode > sceneNode)
	Creates a scene node of a specific type based on another node of that type.

Static Protected Member Functions inherited from ToyMaker::SceneNodeCore
static std::shared_ptr< SceneNodeCore >	copy (const std::shared_ptr< const SceneNodeCore > other)
	Creates a new scene tree by copying another scene node and its descendants.

static void	validateName (const std::string &nodeName)
	Tests whether a given name is actually valid, throwing an error when it is not.

Static Protected Member Functions inherited from ToyMaker::IResource
template<typename TResource>
static void	RegisterResource ()
	Registers this resource as a Resource type with the ResourceDatabase.

Detailed Description

The most basic vanilla flavour of scene node comprised of no more than a name and some components.

See also: SceneNodeFromDescription

The documentation for this class was generated from the following files:

src/engine/scene_system.hpp
src/engine/scene_system.cpp
