PlayerLocal Class Reference

Definition of the aspect class representing a player playing the Game of Ur locally. More...

#include <ur_player_local.hpp>

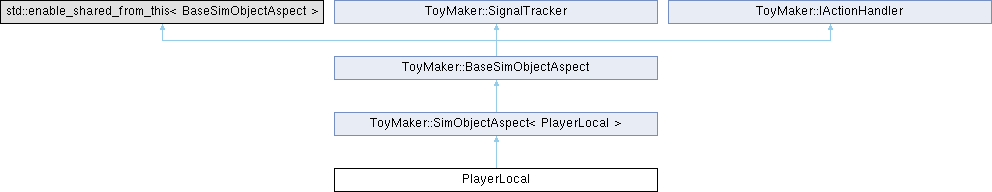

Inheritance diagram for PlayerLocal:

Public Member Functions
std::shared_ptr< BaseSimObjectAspect >	clone () const override
	A method which must be overridden to specify how a new aspect should be constructed as a copy of this one.
Public Member Functions inherited from ToyMaker::BaseSimObjectAspect
virtual	~BaseSimObjectAspect ()=default
	Destroys this object.
virtual void	simulationUpdate (uint32_t simStepMillis)
	Overriding this allows an aspect to respond to simulation updates.
virtual void	variableUpdate (uint32_t variableStepMillis)
	Overriding this allows an aspect to respond to variable updates.
bool	handleAction (const ActionData &actionData, const ActionDefinition &actionDefinition) override final
	Pipes an action received from the InputManager via our SimObject to all that action's handler methods on this aspect.
ViewportNode &	getLocalViewport ()
	Returns the closest ancestor viewport to this node, if one exists (which it should, since this shouldn't be called until this aspect is attached to an active SimObject).
Public Member Functions inherited from ToyMaker::SignalTracker
	SignalTracker ()
	Constructs a new SignalTracker object.
	SignalTracker (const SignalTracker &other)
	Constructs a new SignalTracker.
SignalTracker &	operator= (const SignalTracker &other)
	Copy assignment operator.
	SignalTracker (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, invalidating them from the other.
SignalTracker &	operator= (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, destroying this tracker's resources in the process.
void	connect (const std::string &theirSignal, const std::string &ourObserver, SignalTracker &other)
	Method that connects one of this objects SignalObservers to another tracker's Signal.

Static Public Member Functions
static std::string	getSimObjectAspectTypeName ()
static std::shared_ptr< BaseSimObjectAspect >	create (const nlohmann::json &jsonAspectProperties)

Public Attributes
ToyMaker::SignalObserver< GamePhaseData >	mObserveMovePrompted
	Observer of prompt move events generated by the game's UrController.
ToyMaker::SignalObserver< PieceTypeID, glm::u8vec2 >	mObservePieceLaunchAttempted
	Observer of the launch piece event generated by the game's UI layer.
ToyMaker::SignalObserver< PieceIdentity >	mObserveMovePieceAttempted
	Observer of the move piece event, generated by the game's 3D scene layer.
ToyMaker::SignalObserver	mObserveEndTurnAttempted
	Observer of the end turn event, generated by the game's UI layer.
ToyMaker::SignalObserver	mObserveDiceRollAttempted
	Observerr of the dice roll event, generated by the game's UI layer.
ToyMaker::Signal< PlayerID >	mSigControlInterface {*this, "ControlInterface"}
	Signal emitted when this player has been prompted for an action, and should take control of the UI and 3D scene of the game.

Private Member Functions
void	onActivated () override
	Prompts UrController to create and hand over controls that this player can then use to interact with (the data model of) the game.
void	onLaunchPieceAttempted (PieceTypeID pieceType, glm::u8vec2 location)
	Attempts to launch a game piece to some location.
void	onNextTurnAttempted ()
	Attempts to advance the game by a turn, ending the current turn.
void	onDiceRollAttempted ()
	Attempts to roll the dice.
void	onMoveBoardPieceAttempted (PieceIdentity piece)
	Attempts to move a piece situated somewhere on the board to a new location based on the current dice state.
void	onMovePrompted (GamePhaseData phaseData)
	Callback issued by UrController when this player is required to take action.

Private Attributes
std::string	mControllerPath {}
	The path to the UrController in this scene, from which this aspect will receive its game controls.
std::unique_ptr< UrPlayerControls >	mControls {}
	The controls returned by UrController, used to interact with the game data model.

Additional Inherited Members
Protected Member Functions inherited from ToyMaker::SimObjectAspect< PlayerLocal >
	SimObjectAspect (int explicitlyInitializeMe)
Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
	BaseSimObjectAspect (const BaseSimObjectAspect &other)=delete
	BaseSimObjectAspect (BaseSimObjectAspect &&other)=delete
SimObject &	getSimObject ()
	Returns the sim object that this aspect is attached to.
template<typename TComponent>
void	addComponent (const TComponent &component)
	Adds a component of some type to the underlying entity.
template<typename TComponent>
bool	hasComponent ()
	Tests whether a component of some specific type is present on the object.
template<typename TComponent>
void	updateComponent (const TComponent &component)
	Updates the value of a component belonging to this object to a new one.
template<typename TComponent>
TComponent	getComponent (const float simulationProgress=1.f) const
	Gets the value of a component belonging to this object.
template<typename TComponent>
void	removeComponent ()
	Removes a component of some type belonging to the underlying SimObject.
void	addAspect (const nlohmann::json &jsonAspectProperties)
	Adds a new aspect to the underlying SimObject constructed based on its properties in JSON.
void	addAspect (const BaseSimObjectAspect &aspect)
	Adds a new aspect to the underlying SimObject copied from an already existing aspect.
template<typename TSimObjectAspect>
bool	hasAspect () const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.
bool	hasAspect (const std::string &aspectType) const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.
template<typename TSimObjectAspect>
TSimObjectAspect &	getAspect ()
	Gets an aspect of a particular type belonging to the underlying SimObject.
BaseSimObjectAspect &	getAspect (const std::string &aspectType)
	Gets (a base class reference to) an aspect of a particular type belonging to the underlying SimObject.
template<typename TSimObjectAspect>
void	removeAspect ()
	Removes an aspect from the underlying SimObject.
void	addOrReplaceAspect (const BaseSimObjectAspect &aspect)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed as a copy of another.
void	addOrReplaceAspect (const nlohmann::json &jsonAspectProperties)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed from its JSON description.
std::weak_ptr< FixedActionBinding >	declareFixedActionBinding (const std::string &context, const std::string &action, std::function< bool(const ActionData &, const ActionDefinition &)>)
	Binds some method (or any function) present on this object to an action generated by the InputManager.
EntityID	getEntityID () const
	Gets the ID of the ECSWorld Entity belonging to our SimObject.
std::weak_ptr< ECSWorld >	getWorld () const
	Gets a weak reference to the ECSWorld to which our SimObject's entity belongs.
Static Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
template<typename TSimObjectAspectDerived>
static void	registerAspect ()
	Registers an implementation of an aspect with the SimSystem.

Detailed Description

Definition of the aspect class representing a player playing the Game of Ur locally.

This player uses this application's UI and input system to interact with the game data model.

Member Function Documentation

clone()

std::shared_ptr< ToyMaker::BaseSimObjectAspect > PlayerLocal::clone ( ) const

overridevirtual

A method which must be overridden to specify how a new aspect should be constructed as a copy of this one.

Returns

std::shared_ptr<BaseSimObjectAspect> The newly constructed aspect.

Implements ToyMaker::BaseSimObjectAspect.

onActivated()

void PlayerLocal::onActivated ( )

overrideprivatevirtual

Prompts UrController to create and hand over controls that this player can then use to interact with (the data model of) the game.

Reimplemented from ToyMaker::BaseSimObjectAspect.

onLaunchPieceAttempted()

void PlayerLocal::onLaunchPieceAttempted ( PieceTypeID pieceType, glm::u8vec2 location )

private

Attempts to launch a game piece to some location.

Parameters

pieceType	The type of piece being launched.
location	The location to which the piece should be launched.

onMoveBoardPieceAttempted()

void PlayerLocal::onMoveBoardPieceAttempted ( PieceIdentity piece )

private

Attempts to move a piece situated somewhere on the board to a new location based on the current dice state.

Parameters

piece

The piece to be moved.

onMovePrompted()

void PlayerLocal::onMovePrompted ( GamePhaseData phaseData )

private

Callback issued by UrController when this player is required to take action.

Parameters

phaseData

The current phase of the game.

Member Data Documentation

mObserveDiceRollAttempted

ToyMaker::SignalObserver PlayerLocal::mObserveDiceRollAttempted

Initial value:

{
        *this, "DiceRollAttemptedObserved",
        [this]() { this->onDiceRollAttempted(); }
    }

Observerr of the dice roll event, generated by the game's UI layer.

mObserveEndTurnAttempted

ToyMaker::SignalObserver PlayerLocal::mObserveEndTurnAttempted

Initial value:

{
        *this, "NextTurnAttemptedObserved",
        [this]() { this->onNextTurnAttempted(); }
    }

Observer of the end turn event, generated by the game's UI layer.

mObserveMovePieceAttempted

ToyMaker::SignalObserver<PieceIdentity> PlayerLocal::mObserveMovePieceAttempted

Initial value:

{
        *this, "MovePieceAttemptedObserved",
        [this](PieceIdentity piece) { this->onMoveBoardPieceAttempted(piece); }
    }

Observer of the move piece event, generated by the game's 3D scene layer.

mObserveMovePrompted

ToyMaker::SignalObserver<GamePhaseData> PlayerLocal::mObserveMovePrompted

Initial value:

{
        *this, "MovePromptedObserved",
        [this](GamePhaseData phaseData) {this->onMovePrompted(phaseData);}
    }

Observer of prompt move events generated by the game's UrController.

mObservePieceLaunchAttempted

ToyMaker::SignalObserver<PieceTypeID, glm::u8vec2> PlayerLocal::mObservePieceLaunchAttempted

Initial value:

{
        *this, "LaunchPieceAttemptedObserved",
        [this](PieceTypeID pieceType, glm::u8vec2 location) { this->onLaunchPieceAttempted(pieceType, location); }
    }

Observer of the launch piece event generated by the game's UI layer.

---

The documentation for this class was generated from the following files:

• src/app/ur_player_local.hpp
• src/app/ur_player_local.cpp
