An aspect responsible for rendering text textures and displaying them on a surface in the scene. More...

#include <ui_text.hpp>

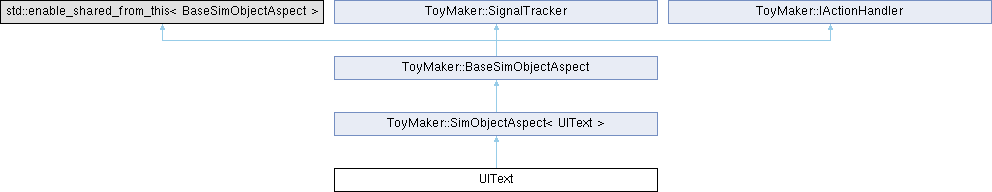

Inheritance diagram for UIText:

Public Member Functions
	UIText ()
	Constructs a new UIText aspect.

std::shared_ptr< BaseSimObjectAspect >	clone () const override
	Constructs a new UIText instance using this one as its blueprint.

void	onActivated () override
	Renders the initial text associated with this object once it becomes a part of the active scene.

std::string	getText () const
	Gets the actual text associated with this UIText object.

void	updateText (const std::string &newText)
	Updates the text rendered by this object.

void	updateColor (glm::u8vec4 newColour)
	Updates the color of the text rendered by this object.

void	updateScale (float scale)
	Updates the scale of this object.

void	updateFont (const std::string &textResourceName)
	Updates the font using which this object's text texture is rendered.

void	updateAnchor (glm::vec2 anchor)
	Updates the point considered this object's origin, where (0,0) represents the top left corner of the object and (1,1) represents its bottom right corner.

Public Member Functions inherited from ToyMaker::BaseSimObjectAspect
virtual	~BaseSimObjectAspect ()=default
	Destroys this object.

virtual void	simulationUpdate (uint32_t simStepMillis)
	Overriding this allows an aspect to respond to simulation updates.

virtual void	variableUpdate (uint32_t variableStepMillis)
	Overriding this allows an aspect to respond to variable updates.

bool	handleAction (const ActionData &actionData, const ActionDefinition &actionDefinition) override final
	Pipes an action received from the InputManager via our SimObject to all that action's handler methods on this aspect.

ViewportNode &	getLocalViewport ()
	Returns the closest ancestor viewport to this node, if one exists (which it should, since this shouldn't be called until this aspect is attached to an active SimObject).

Public Member Functions inherited from ToyMaker::SignalTracker
	SignalTracker ()
	Constructs a new SignalTracker object.

	SignalTracker (const SignalTracker &other)
	Constructs a new SignalTracker.

SignalTracker &	operator= (const SignalTracker &other)
	Copy assignment operator.

	SignalTracker (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, invalidating them from the other.

SignalTracker &	operator= (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, destroying this tracker's resources in the process.

void	connect (const std::string &theirSignal, const std::string &ourObserver, SignalTracker &other)
	Method that connects one of this objects SignalObservers to another tracker's Signal.

Static Public Member Functions
static std::string	getSimObjectAspectTypeName ()
	Gets the aspect type string for this class.

static std::shared_ptr< BaseSimObjectAspect >	create (const nlohmann::json &jsonAspectProperties)
	Creates a new UIText aspect based on its JSON description.

Private Member Functions
void	recomputeTexture ()
	Recomputes the text texture and vertex offsets associated with this object based on its configuration.

Private Attributes
glm::u8vec4	mColor {0x00, 0x00, 0x00, 0xFF}
	The color associated with the text rendered by this object.

std::shared_ptr< ToyMaker::TextFont >	mFont {}
	The font used to render the text texture used by this object.

std::string	mText {}
	The text displayed by this object on its associated StaticModel surface.

float	mScale { 1e-2 }
	The scale, relative to the texture's dimensions, with which the object is made.

uint32_t	mMaxWidthPixels { 0 }
	The width, in pixels, a single line of text is rendered on before it is wrapped around to the next line in the text texture.

glm::vec2	mAnchor {0.f, 0.f}
	The point considered the origin of this object, where (0,0) represents the top left hand corner, and (1,1) the bottom right corner.

Additional Inherited Members
Protected Member Functions inherited from ToyMaker::SimObjectAspect< UIText >
	SimObjectAspect (int explicitlyInitializeMe)

Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
	BaseSimObjectAspect (const BaseSimObjectAspect &other)=delete

	BaseSimObjectAspect (BaseSimObjectAspect &&other)=delete

SimObject &	getSimObject ()
	Returns the sim object that this aspect is attached to.

template<typename TComponent>
void	addComponent (const TComponent &component)
	Adds a component of some type to the underlying entity.

template<typename TComponent>
bool	hasComponent ()
	Tests whether a component of some specific type is present on the object.

template<typename TComponent>
void	updateComponent (const TComponent &component)
	Updates the value of a component belonging to this object to a new one.

template<typename TComponent>
TComponent	getComponent (const float simulationProgress=1.f) const
	Gets the value of a component belonging to this object.

template<typename TComponent>
void	removeComponent ()
	Removes a component of some type belonging to the underlying SimObject.

void	addAspect (const nlohmann::json &jsonAspectProperties)
	Adds a new aspect to the underlying SimObject constructed based on its properties in JSON.

void	addAspect (const BaseSimObjectAspect &aspect)
	Adds a new aspect to the underlying SimObject copied from an already existing aspect.

template<typename TSimObjectAspect>
bool	hasAspect () const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.

bool	hasAspect (const std::string &aspectType) const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.

template<typename TSimObjectAspect>
TSimObjectAspect &	getAspect ()
	Gets an aspect of a particular type belonging to the underlying SimObject.

BaseSimObjectAspect &	getAspect (const std::string &aspectType)
	Gets (a base class reference to) an aspect of a particular type belonging to the underlying SimObject.

template<typename TSimObjectAspect>
void	removeAspect ()
	Removes an aspect from the underlying SimObject.

void	addOrReplaceAspect (const BaseSimObjectAspect &aspect)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed as a copy of another.

void	addOrReplaceAspect (const nlohmann::json &jsonAspectProperties)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed from its JSON description.

std::weak_ptr< FixedActionBinding >	declareFixedActionBinding (const std::string &context, const std::string &action, std::function< bool(const ActionData &, const ActionDefinition &)>)
	Binds some method (or any function) present on this object to an action generated by the InputManager.

EntityID	getEntityID () const
	Gets the ID of the ECSWorld Entity belonging to our SimObject.

std::weak_ptr< ECSWorld >	getWorld () const
	Gets a weak reference to the ECSWorld to which our SimObject's entity belongs.

Static Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
template<typename TSimObjectAspectDerived>
static void	registerAspect ()
	Registers an implementation of an aspect with the SimSystem.

Detailed Description

An aspect responsible for rendering text textures and displaying them on a surface in the scene.

Member Function Documentation

◆ clone()

std::shared_ptr< ToyMaker::BaseSimObjectAspect > UIText::clone ( ) const

overridevirtual

Constructs a new UIText instance using this one as its blueprint.

Returns: std::shared_ptr<BaseSimObjectAspect> The newly constructed UIText instance.

Implements ToyMaker::BaseSimObjectAspect.

◆ create()

std::shared_ptr< ToyMaker::BaseSimObjectAspect > UIText::create ( const nlohmann::json & jsonAspectProperties )

static

Creates a new UIText aspect based on its JSON description.

Parameters

jsonAspectProperties The json description of this UIText instance.

Returns: std::shared_ptr<BaseSimObjectAspect> The newly constructed UIText instance.

◆ getSimObjectAspectTypeName()

static std::string UIText::getSimObjectAspectTypeName ( )

inlinestatic

Gets the aspect type string for this class.

Returns: std::string This class' aspect type string.

◆ getText()

std::string UIText::getText ( ) const

inline

Gets the actual text associated with this UIText object.

Returns: std::string This object's display text.

◆ onActivated()

void UIText::onActivated ( )

overridevirtual

Renders the initial text associated with this object once it becomes a part of the active scene.

Reimplemented from ToyMaker::BaseSimObjectAspect.

◆ updateAnchor()

void UIText::updateAnchor ( glm::vec2 anchor )

Updates the point considered this object's origin, where (0,0) represents the top left corner of the object and (1,1) represents its bottom right corner.

Parameters

anchor This object's new anchor.

◆ updateColor()

void UIText::updateColor ( glm::u8vec4 newColour )

Updates the color of the text rendered by this object.

Parameters

newColour This object's display text's new colour.

◆ updateFont()

void UIText::updateFont ( const std::string & textResourceName )

Updates the font using which this object's text texture is rendered.

Parameters

textResourceName The new font's text texture resource name.

◆ updateScale()

void UIText::updateScale ( float scale )

Updates the scale of this object.

Parameters

scale The new scale for this text object.

◆ updateText()

void UIText::updateText ( const std::string & newText )

Updates the text rendered by this object.

Parameters

newText The new text used by this object.

The documentation for this class was generated from the following files:

src/app/ui_text.hpp
src/app/ui_text.cpp
