The aspect class responsible for displaying an image from a file scaled to some specific dimensions. More...

#include <ui_image.hpp>

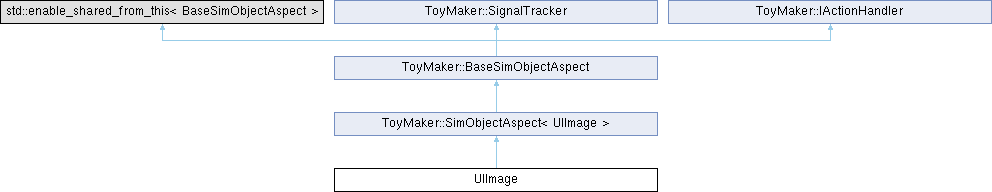

Inheritance diagram for UIImage:

Public Member Functions
	UIImage ()
	Constructs a new UIImage aspect.

std::shared_ptr< BaseSimObjectAspect >	clone () const override
	Constructs a new UIImage using this object as its blueprint.

void	onActivated () override
	Loads and displays the image associated with this aspect when it is added to the active scene.

void	updateImage (const std::string &imageFilepath)
	Updates the image associated with this object.

void	updateDimensions (const glm::uvec2 &dimensions)
	Changes the dimensions the loaded image should be confined or scaled to (while maintaining its original aspect).

void	updateAnchor (const glm::vec2 &anchor)
	Updates the point considered the origin of this object's StaticModel.

Public Member Functions inherited from ToyMaker::BaseSimObjectAspect
virtual	~BaseSimObjectAspect ()=default
	Destroys this object.

virtual void	simulationUpdate (uint32_t simStepMillis)
	Overriding this allows an aspect to respond to simulation updates.

virtual void	variableUpdate (uint32_t variableStepMillis)
	Overriding this allows an aspect to respond to variable updates.

bool	handleAction (const ActionData &actionData, const ActionDefinition &actionDefinition) override final
	Pipes an action received from the InputManager via our SimObject to all that action's handler methods on this aspect.

ViewportNode &	getLocalViewport ()
	Returns the closest ancestor viewport to this node, if one exists (which it should, since this shouldn't be called until this aspect is attached to an active SimObject).

Public Member Functions inherited from ToyMaker::SignalTracker
	SignalTracker ()
	Constructs a new SignalTracker object.

	SignalTracker (const SignalTracker &other)
	Constructs a new SignalTracker.

SignalTracker &	operator= (const SignalTracker &other)
	Copy assignment operator.

	SignalTracker (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, invalidating them from the other.

SignalTracker &	operator= (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, destroying this tracker's resources in the process.

void	connect (const std::string &theirSignal, const std::string &ourObserver, SignalTracker &other)
	Method that connects one of this objects SignalObservers to another tracker's Signal.

Static Public Member Functions
static std::string	getSimObjectAspectTypeName ()
	Gets the aspect type string associated with this class.

static std::shared_ptr< BaseSimObjectAspect >	create (const nlohmann::json &jsonAspectProperties)
	Creates a new UIImage instance from its description in JSON.

Private Member Functions
void	recomputeTexture ()
	Recomputes the texture associated with this object's StaticModel.

Private Attributes
std::string	mImageFilepath {}
	The file from which the image to be displayed was loaded.

glm::vec2	mAnchor {0.f, 0.f}
	The point considered the origin of this object, with (0,0) being its top left corner and (1,1) being its bottom right corner.

glm::uvec2	mDimensions { 0.f, 0.f }
	The dimensions within which the loaded image will be displayed.

Additional Inherited Members
Protected Member Functions inherited from ToyMaker::SimObjectAspect< UIImage >
	SimObjectAspect (int explicitlyInitializeMe)

Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
	BaseSimObjectAspect (const BaseSimObjectAspect &other)=delete

	BaseSimObjectAspect (BaseSimObjectAspect &&other)=delete

SimObject &	getSimObject ()
	Returns the sim object that this aspect is attached to.

template<typename TComponent>
void	addComponent (const TComponent &component)
	Adds a component of some type to the underlying entity.

template<typename TComponent>
bool	hasComponent ()
	Tests whether a component of some specific type is present on the object.

template<typename TComponent>
void	updateComponent (const TComponent &component)
	Updates the value of a component belonging to this object to a new one.

template<typename TComponent>
TComponent	getComponent (const float simulationProgress=1.f) const
	Gets the value of a component belonging to this object.

template<typename TComponent>
void	removeComponent ()
	Removes a component of some type belonging to the underlying SimObject.

void	addAspect (const nlohmann::json &jsonAspectProperties)
	Adds a new aspect to the underlying SimObject constructed based on its properties in JSON.

void	addAspect (const BaseSimObjectAspect &aspect)
	Adds a new aspect to the underlying SimObject copied from an already existing aspect.

template<typename TSimObjectAspect>
bool	hasAspect () const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.

bool	hasAspect (const std::string &aspectType) const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.

template<typename TSimObjectAspect>
TSimObjectAspect &	getAspect ()
	Gets an aspect of a particular type belonging to the underlying SimObject.

BaseSimObjectAspect &	getAspect (const std::string &aspectType)
	Gets (a base class reference to) an aspect of a particular type belonging to the underlying SimObject.

template<typename TSimObjectAspect>
void	removeAspect ()
	Removes an aspect from the underlying SimObject.

void	addOrReplaceAspect (const BaseSimObjectAspect &aspect)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed as a copy of another.

void	addOrReplaceAspect (const nlohmann::json &jsonAspectProperties)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed from its JSON description.

std::weak_ptr< FixedActionBinding >	declareFixedActionBinding (const std::string &context, const std::string &action, std::function< bool(const ActionData &, const ActionDefinition &)>)
	Binds some method (or any function) present on this object to an action generated by the InputManager.

EntityID	getEntityID () const
	Gets the ID of the ECSWorld Entity belonging to our SimObject.

std::weak_ptr< ECSWorld >	getWorld () const
	Gets a weak reference to the ECSWorld to which our SimObject's entity belongs.

Static Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
template<typename TSimObjectAspectDerived>
static void	registerAspect ()
	Registers an implementation of an aspect with the SimSystem.

Detailed Description

The aspect class responsible for displaying an image from a file scaled to some specific dimensions.

Usage:

Its appearance in JSON is as follows:

{
    "type": "UIImage",
    "image_filepath": "data/textures/button_active.png",
    "dimensions": [620, 440],
    "anchor": [0.5, 0.5]
}

To change the image associated with this aspect, call UIImage::updateImage(), passing the path to the file from which the new image is to be loaded.

Member Function Documentation

◆ clone()

std::shared_ptr< ToyMaker::BaseSimObjectAspect > UIImage::clone ( ) const

overridevirtual

Constructs a new UIImage using this object as its blueprint.

Returns: std::shared_ptr<BaseSimObjectAspect> A pointer to the base aspect class of the new UIImage object.

Implements ToyMaker::BaseSimObjectAspect.

◆ create()

std::shared_ptr< ToyMaker::BaseSimObjectAspect > UIImage::create ( const nlohmann::json & jsonAspectProperties )

static

Creates a new UIImage instance from its description in JSON.

Parameters

jsonAspectProperties The JSON description of the UIImage instance.

Returns: std::shared_ptr<BaseSimObjectAspect> The newly constructed UIImage object.

◆ getSimObjectAspectTypeName()

static std::string UIImage::getSimObjectAspectTypeName ( )

inlinestatic

Gets the aspect type string associated with this class.

Returns: std::string This class' aspect type string.

◆ onActivated()

void UIImage::onActivated ( )

overridevirtual

Loads and displays the image associated with this aspect when it is added to the active scene.

Reimplemented from ToyMaker::BaseSimObjectAspect.

◆ updateAnchor()

void UIImage::updateAnchor ( const glm::vec2 & anchor )

Updates the point considered the origin of this object's StaticModel.

(0, 0) corresponds to the top left corner of this object, while (1, 1) corresponds to the bottom right corner.

Parameters

anchor The new origin of the object, relative to its top left corner and the objects total dimensions.

◆ updateDimensions()

void UIImage::updateDimensions ( const glm::uvec2 & dimensions )

Changes the dimensions the loaded image should be confined or scaled to (while maintaining its original aspect).

Parameters

dimensions The new dimensions of the image.

◆ updateImage()

void UIImage::updateImage ( const std::string & imageFilepath )

Updates the image associated with this object.

Parameters

imageFilepath The path to the file containing the new image to be displayed.

The documentation for this class was generated from the following files:

src/app/ui_image.hpp
src/app/ui_image.cpp
