ToyMaker::StaticModelFromFile Class Reference

A constructor method for StaticModels that loads such a model from its model file (w/ extensions such as .fbx, .obj, .gltf, and so on) More...

#include <model.hpp>

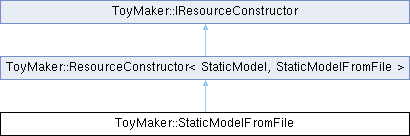

Inheritance diagram for ToyMaker::StaticModelFromFile:

Public Member Functions
	StaticModelFromFile ()
	Creates a StaticModelFromFile object.
Public Member Functions inherited from ToyMaker::ResourceConstructor< StaticModel, StaticModelFromFile >
std::string	getResourceConstructorName_ () const override
	Gets the resource constructor type string of the constructor.
Public Member Functions inherited from ToyMaker::IResourceConstructor
virtual	~IResourceConstructor ()=default
	Destroys this resource constructor (when the application is terminated.)

Static Public Member Functions
static std::string	getResourceConstructorName ()
	Gets the resource constructor type string for this constructor.

Private Member Functions
std::shared_ptr< IResource >	createResource (const nlohmann::json &methodParameters) override
	Creates a StaticModel resource based on its parameters.

Additional Inherited Members
Protected Member Functions inherited from ToyMaker::ResourceConstructor< StaticModel, StaticModelFromFile >
	ResourceConstructor (int explicitlyInitializeMe)
	Construct a new ResourceConstructor object.
Protected Member Functions inherited from ToyMaker::IResourceConstructor
	IResourceConstructor ()=default
	Construct a new IResourceConstructor object.
Static Protected Member Functions inherited from ToyMaker::IResourceConstructor
template<typename TResource, typename TResourceConstructor>
static void	RegisterResourceConstructor ()
	Registers this resource constructor against its respective ResourceFactory during static initialization.

Detailed Description

A constructor method for StaticModels that loads such a model from its model file (w/ extensions such as .fbx, .obj, .gltf, and so on)

Such a resource's description in JSON might look like:

{
    "method": "fromFile",
    "name": "EagleModel_One",
    "parameters": {
        "path": "data/models/UrEagle.obj",
        "material_overrides": {
            "0": [
                {
                    "name": "colorMultiplier",
                    "type": "vec4",
                    "value": [0.05, 0.05, 0.05, 1.0]
                }
            ],
            "1": [
                {
                    "name": "colorMultiplier",
                    "type": "vec4",
                    "value": [0.05, 0.05, 0.05, 1.0]
                }
            ]
        }
    },
    "type": "StaticModel"
}

Where the path property is required and the material_overrides property may be left unspecified. The number next to each material override represents the index of the mesh whose material is being overridden.

Member Function Documentation

createResource()

std::shared_ptr< IResource > StaticModelFromFile::createResource ( const nlohmann::json & methodParameters )

overrideprivatevirtual

Creates a StaticModel resource based on its parameters.

Parameters

methodParameters

The parameters associated with this model object.

Returns

std::shared_ptr<IResource> A reference to the constructed resource.

Implements ToyMaker::IResourceConstructor.

getResourceConstructorName()

static std::string ToyMaker::StaticModelFromFile::getResourceConstructorName ( )

inlinestatic

Gets the resource constructor type string for this constructor.

Returns

std::string This object's resource constructor type string.

---

The documentation for this class was generated from the following files:

• src/engine/model.hpp
• src/engine/model.cpp
