ToyMaker::StaticMeshCuboidDimensions Class Reference

Constructs a cuboid mesh based on its dimensions. More...

#include <shapegen.hpp>

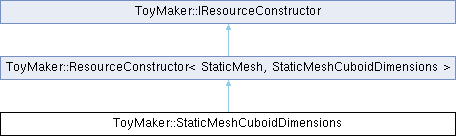

Inheritance diagram for ToyMaker::StaticMeshCuboidDimensions:

Static Public Member Functions
static std::string	getResourceConstructorName ()

Private Member Functions
std::shared_ptr< IResource >	createResource (const nlohmann::json &methodParameters) override
	Creates a resource object using the parameters specified in methodParameters.

Additional Inherited Members
Public Member Functions inherited from ToyMaker::ResourceConstructor< StaticMesh, StaticMeshCuboidDimensions >
std::string	getResourceConstructorName_ () const override
	Gets the resource constructor type string of the constructor.
Public Member Functions inherited from ToyMaker::IResourceConstructor
virtual	~IResourceConstructor ()=default
	Destroys this resource constructor (when the application is terminated.)
Protected Member Functions inherited from ToyMaker::ResourceConstructor< StaticMesh, StaticMeshCuboidDimensions >
	ResourceConstructor (int explicitlyInitializeMe)
	Construct a new ResourceConstructor object.
Protected Member Functions inherited from ToyMaker::IResourceConstructor
	IResourceConstructor ()=default
	Construct a new IResourceConstructor object.
Static Protected Member Functions inherited from ToyMaker::IResourceConstructor
template<typename TResource, typename TResourceConstructor>
static void	RegisterResourceConstructor ()
	Registers this resource constructor against its respective ResourceFactory during static initialization.

Detailed Description

Constructs a cuboid mesh based on its dimensions.

Example:

renderSet.second.mSkyboxRenderStage->attachMesh("unitCube", ResourceDatabase::ConstructAnonymousResource<StaticMesh>({
    {"type", StaticMesh::getResourceTypeName()},
    {"method", StaticMeshCuboidDimensions::getResourceConstructorName()},
    {"parameters", {
        {"depth", 2.f},
        {"width", 2.f},
        {"height", 2.f},
        {"layout", mSkyboxTexture->getColorBufferDefinition().mCubemapLayout},
        {"flip_texture_y", true},
    }},
}));

Member Function Documentation

createResource()

std::shared_ptr< IResource > StaticMeshCuboidDimensions::createResource ( const nlohmann::json & methodParameters )

overrideprivatevirtual

Creates a resource object using the parameters specified in methodParameters.

Parameters

methodParameters

The parameters used to construct an object via this constructor.

Returns

std::shared_ptr<IResource> A reference to the created resource.

Implements ToyMaker::IResourceConstructor.

---

The documentation for this class was generated from the following files:

• src/engine/shapegen.hpp
• src/engine/shapegen.cpp
