Constructs a ShaderProgram from its shader program header, found at a particular path. More...

#include <shader_program.hpp>

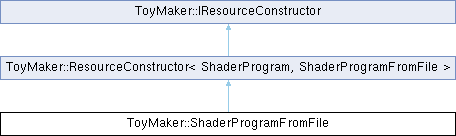

Inheritance diagram for ToyMaker::ShaderProgramFromFile:

Static Public Member Functions
static std::string	getResourceConstructorName ()

Private Member Functions
std::shared_ptr< IResource >	createResource (const nlohmann::json &methodParameters) override
	Creates a resource object using the parameters specified in methodParameters.

Additional Inherited Members
Public Member Functions inherited from ToyMaker::ResourceConstructor< ShaderProgram, ShaderProgramFromFile >
std::string	getResourceConstructorName_ () const override
	Gets the resource constructor type string of the constructor.

Public Member Functions inherited from ToyMaker::IResourceConstructor
virtual	~IResourceConstructor ()=default
	Destroys this resource constructor (when the application is terminated.)

Protected Member Functions inherited from ToyMaker::ResourceConstructor< ShaderProgram, ShaderProgramFromFile >
	ResourceConstructor (int explicitlyInitializeMe)
	Construct a new ResourceConstructor object.

Protected Member Functions inherited from ToyMaker::IResourceConstructor
	IResourceConstructor ()=default
	Construct a new IResourceConstructor object.

Static Protected Member Functions inherited from ToyMaker::IResourceConstructor
template<typename TResource, typename TResourceConstructor>
static void	RegisterResourceConstructor ()
	Registers this resource constructor against its respective ResourceFactory during static initialization.

Detailed Description

Constructs a ShaderProgram from its shader program header, found at a particular path.

The resource description for a shader program:

nlohmann::json shaderDescription {
    {"name", shaderFilepath},
    {"type", ShaderProgram::getResourceTypeName()},
    {"method", ShaderProgramFromFile::getResourceConstructorName()},
    {"parameters", {
        {"path", shaderFilepath}
    }}
}

The shader program json header itself:

{
    "name": "basicShader",
    "type": "shader/program",
    "vertexShader": "basicVS.json",
    "fragmentShader": "basicFS.json"
}

Fragment shader header:

{
    "name": "basicFS",
    "type": "shader/fragment",
    "sources": [
        "common/versionHeader.glsl",
        "common/fragmentAttributes.fs",
        "common/genericSampler.fs",
        "basic/basic.fs"
    ]
}

Vertex shader header:

{
    "name": "basicVS",
    "type": "shader/vertex",
    "sources": [
        "common/versionHeader.glsl",
        "common/fragmentAttributes.vs",
        "common/vertexAttributes.vs",
        "basic/basic.vs"
    ]
}

Vertex shader source (concatenated from shader header `sources` list)

// "common/versionHeader.glsl"
#version 330 core

// "common/vertexAttributes.vs"
layout(location=0) in vec4 attrPosition;
layout(location=1) in vec4 attrNormal;
layout(location=2) in vec4 attrTangent;
layout(location=3) in vec4 attrColor;
layout(location=4) in vec2 attrUV1;
layout(location=5) in vec2 attrUV2;
layout(location=6) in vec2 attrUV3;

// "common/fragmentAttributes.vs"
out FRAGMENT_ATTRIBUTES {
    // world position of the associated fragment
    vec4 position;
    // normal vector for the associated fragment
    vec4 normal;
    // tangent vector for the associated fragment
    vec4 tangent;
    // color of the associated fragment
    vec4 color;
    // first texture sampling coordinates
    vec2 UV1;
    // second (ditto)
    vec2 UV2;
    // third (ditto)
    vec2 UV3;
} fragAttr;


// "basic/basic.vs"
void main() {
    fragAttr.position = attrPosition;
    fragAttr.UV1 = attrUV1;

    gl_Position = fragAttr.position;
}

Source files may be perused for further examples.

Member Function Documentation

◆ createResource()

std::shared_ptr< IResource > ShaderProgramFromFile::createResource ( const nlohmann::json & methodParameters )

overrideprivatevirtual

Creates a resource object using the parameters specified in methodParameters.

Parameters

methodParameters The parameters used to construct an object via this constructor.

Returns: std::shared_ptr<IResource> A reference to the created resource.

Implements ToyMaker::IResourceConstructor.

The documentation for this class was generated from the following files:

src/engine/shader_program.hpp
src/engine/shader_program.cpp
