ToyMaker::BaseOffscreenRenderStage Class Reference

Base class for render stages which render to an offscreen buffer. More...

#include <render_stage.hpp>

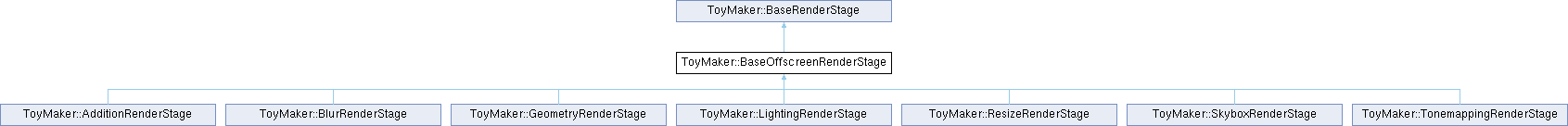

Inheritance diagram for ToyMaker::BaseOffscreenRenderStage:

Public Member Functions
	BaseOffscreenRenderStage (const std::string &shaderFilepath, const nlohmann::json &templateFramebufferDescription)
	Constructs a new Base Offscreen Render Stage object.
void	setTargetTexture (std::shared_ptr< Texture > texture, std::size_t targetID)
	I don't really know what my intention for this was.
std::size_t	attachTextureAsTarget (std::shared_ptr< Texture > textureHandle)
	Adds a texture to this stage's list of target textures.
std::size_t	attachTextureAsTarget (const std::string &targetName, std::shared_ptr< Texture > textureHandle)
	Adds a texture to this stage's list of named target textures.
void	declareRenderTarget (const std::string &name, unsigned int index)
	Assigns a name to an attached target texture, intended to be used by the system connecting render stages together by input and output.
std::shared_ptr< Texture >	getRenderTarget (const std::string &name)
	Gets a named render target texture from this stage.
void	detachTargetTexture (std::size_t targetTextureID)
	(in theory) Removes a target texture from this stage's list of target textures.
void	removeRenderTarget (const std::string &name)
	(in theory) Removes a target texture that was given a name from a list of named target textures.
bool	hasAttachedRBO () const
	Tests whether an RBO was attached to this render stage.
bool	hasOwnRBO () const
	Tests whether this stage has created and owns an RBO.
RBO &	getOwnRBO ()
	Returns the RBO owned by this stage's Framebuffer, if it has one.
void	attachRBO (RBO &rbo)
	Attaches an RBO to this stage's Framebuffer which may or may not be owned by it.
void	detachRBO ()
	Detaches the RBO currently attached to this stage's Framebuffer.
Public Member Functions inherited from ToyMaker::BaseRenderStage
	BaseRenderStage (const std::string &shaderFilepath)
	Constructs a new BaseRenderStage object.
	BaseRenderStage (const BaseRenderStage &other)=delete
	BaseRenderStage (BaseRenderStage &&other)=delete
BaseRenderStage &	operator= (const BaseRenderStage &other)=delete
BaseRenderStage &	operator= (BaseRenderStage &&other)=delete
virtual	~BaseRenderStage ()
	Destroys the Base Render Stage object.
virtual void	setup (const glm::u16vec2 &targetDimensions)=0
	Sets up the program per its configuration.
virtual void	validate ()=0
	Validates this stage by checking for availability of required resources, connections with adjacent render stages.
virtual void	execute ()=0
	Executes this render stage, presumably after preceding render stages have been executed.
void	attachTexture (const std::string &name, std::shared_ptr< Texture > textureHandle)
	Attaches a named texture to this rendering stage.
void	attachMesh (const std::string &name, std::shared_ptr< StaticMesh > meshHandle)
	Attaches a named texture to this rendering stage.
void	attachMaterial (const std::string &name, std::shared_ptr< Material > materialHandle)
	Attaches a named material to this rendering stage.
std::shared_ptr< Texture >	getTexture (const std::string &name)
	Gets a reference to an attached texture by its name.
std::shared_ptr< StaticMesh >	getMesh (const std::string &name)
	Gets a reference to an attached mesh by its name.
std::shared_ptr< Material >	getMaterial (const std::string &name)
	Gets a reference to an attached material by its name.
void	useViewport ()
	Should be called once this stage's shader is made active; applies the viewport config associated with this render stage.
void	setTargetViewport (const SDL_Rect &targetViewport)
	Sets the rendering area for this stage, a rectangular sub-region of the target texture.
void	submitToRenderQueue (OpaqueRenderUnit renderUnit)
	Adds an opaque render unit expected by this stage to its associated render queue.
void	submitToRenderQueue (LightRenderUnit lightRenderUnit)
	Adds a light render unit expected by this stage to its associated render queue.

Protected Attributes
std::shared_ptr< Framebuffer >	mFramebufferHandle
	The framebuffer owned by this stage, to which this stage renders its results.
nlohmann::json	mTemplateFramebufferDescription
	A description of this stage's framebuffer, used as a template to create a framebuffer matching requested render dimensions.
std::map< std::string, unsigned int >	mRenderTargets {}
	A list of named render target textures along with their indices in this stage's framebuffer's target color buffer list.
Protected Attributes inherited from ToyMaker::BaseRenderStage
GLuint	mVertexArrayObject {}
	The OpenGL vertex array object associated with this object.
std::shared_ptr< ShaderProgram >	mShaderHandle
	A handle to the compiled and uploaded shader program associated with this render stage.
std::map< std::string, std::shared_ptr< Texture > >	mTextureAttachments {}
	This stage's named texture attachments.
std::map< std::string, std::shared_ptr< StaticMesh > >	mMeshAttachments {}
	This stage's named mesh attachments.
std::map< std::string, std::shared_ptr< Material > >	mMaterialAttachments {}
	This stage's named material attachments.
std::priority_queue< OpaqueRenderUnit >	mOpaqueMeshQueue {}
	A queue containing all the opaque meshes to be rendered this frame by this stage.
std::priority_queue< LightRenderUnit >	mLightQueue {}
	A queue containing all the light units to be rendered this frame by this stage.
SDL_Rect	mTargetViewport {0, 0, 800, 600}
	The rectangle defining the sub-region of its target texture to which this render stage renders.

Detailed Description

Base class for render stages which render to an offscreen buffer.

Constructor & Destructor Documentation

BaseOffscreenRenderStage()

BaseOffscreenRenderStage::BaseOffscreenRenderStage	(	const std::string &	shaderFilepath,
		const nlohmann::json &	templateFramebufferDescription )

Constructs a new Base Offscreen Render Stage object.

Parameters

shaderFilepath	The path to the JSON shader program header used by this stage.
templateFramebufferDescription	A JSON description of this stage's Framebuffer's initial state.

Member Function Documentation

attachRBO()

void BaseOffscreenRenderStage::attachRBO

(

RBO &

rbo

)

Attaches an RBO to this stage's Framebuffer which may or may not be owned by it.

Parameters

rbo	A reference to the RBO being attached to this stage.

attachTextureAsTarget() [1/2]

std::size_t BaseOffscreenRenderStage::attachTextureAsTarget	(	const std::string &	targetName,
		std::shared_ptr< Texture >	textureHandle )

Adds a texture to this stage's list of named target textures.

Parameters

targetName	The name of the texture as target, once attached.
textureHandle	The actual texture being attached as a target.

Returns

std::size_t The index associated with the newly added target texture.

See also

declareRenderTarget()

attachTextureAsTarget() [2/2]

std::size_t BaseOffscreenRenderStage::attachTextureAsTarget

(

std::shared_ptr< Texture >

textureHandle

)

Adds a texture to this stage's list of target textures.

Parameters

textureHandle

The texture being added to this stage's target texture list.

Returns

std::size_t The ID of the newly added target texture.

declareRenderTarget()

void BaseOffscreenRenderStage::declareRenderTarget	(	const std::string &	name,
		unsigned int	index )

Assigns a name to an attached target texture, intended to be used by the system connecting render stages together by input and output.

Parameters

name	The name of the render target.
index	The target texture attachment ID.

detachTargetTexture()

void ToyMaker::BaseOffscreenRenderStage::detachTargetTexture

(

std::size_t

targetTextureID

)

(in theory) Removes a target texture from this stage's list of target textures.

Parameters

targetTextureID

The index of the target texture to remove.

Todo

Figure out what my intentions were re: this method.

getOwnRBO()

RBO & BaseOffscreenRenderStage::getOwnRBO

(

)

Returns the RBO owned by this stage's Framebuffer, if it has one.

Returns

RBO& A reference to the RBO owned by this stage.

getRenderTarget()

std::shared_ptr< Texture > BaseOffscreenRenderStage::getRenderTarget

(

const std::string &

name

)

Gets a named render target texture from this stage.

Parameters

name	The name of the render target.

Returns

std::shared_ptr<Texture> The handle to the target.

See also

declareRenderTarget()

attachTextureAsTarget()

hasAttachedRBO()

bool BaseOffscreenRenderStage::hasAttachedRBO

(

)

const

Tests whether an RBO was attached to this render stage.

Return values

true	This stage has an RBO attached.
false	This stage has no RBO attached.

hasOwnRBO()

bool BaseOffscreenRenderStage::hasOwnRBO

(

)

const

Tests whether this stage has created and owns an RBO.

Return values

true	This stage has an RBO of its own.
false	This stage has no RBO of its own.

removeRenderTarget()

void ToyMaker::BaseOffscreenRenderStage::removeRenderTarget

(

const std::string &

name

)

(in theory) Removes a target texture that was given a name from a list of named target textures.

Parameters

name	The name of the target texture to be made nameless.

Todo

Figure out what my intentions were re: this method.

setTargetTexture()

void ToyMaker::BaseOffscreenRenderStage::setTargetTexture	(	std::shared_ptr< Texture >	texture,
		std::size_t	targetID )

I don't really know what my intention for this was.

Parameters

texture	The texture being made a target, presumably.
targetID	The color attachment ID the texture should be bound to in this stage's framebuffer, presumably.

Todo

Figure out whatever it was I might have wanted this for.

---

The documentation for this class was generated from the following files:

• src/engine/render_stage.hpp
• src/engine/render_stage.cpp
