The aspect responsible for mapping points on the 3D game board to their equivalent coordinates on the game board data model. More...

#include <board_locations.hpp>

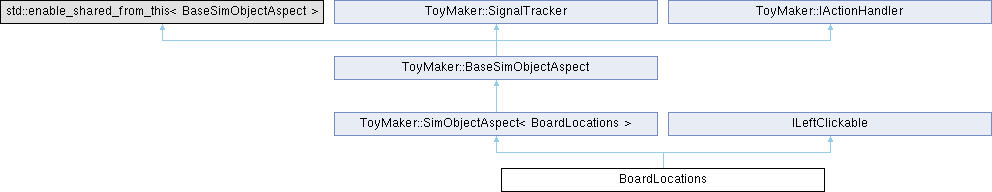

Inheritance diagram for BoardLocations:

Public Member Functions
std::shared_ptr< BaseSimObjectAspect >	clone () const override
	Uses this aspect's data to construct a new aspect.

bool	onPointerLeftClick (glm::vec4 clickLocation) override
	Responds to left click events by logging them to the console, translating the location of the click to their game board grid coordinates.

bool	onPointerLeftRelease (glm::vec4 clickLocation) override
	Responds to a full left click by emitting mSigBoardClicked with the clicked location's equivalent game board coordinates, if possible.

glm::uvec2	boardPointToGridIndices (glm::vec2 point) const
	Given the 2D coordinates of a point relative to the top surface of the board, returns the equivalent game board data model grid coordinates.

glm::vec4	gridIndicesToBoardPoint (glm::u8vec2 gridIndices) const
	Translates game board data model grid coordinates to their real world 3D coordinates equivalent.

Public Member Functions inherited from ToyMaker::BaseSimObjectAspect
virtual	~BaseSimObjectAspect ()=default
	Destroys this object.

virtual void	simulationUpdate (uint32_t simStepMillis)
	Overriding this allows an aspect to respond to simulation updates.

virtual void	variableUpdate (uint32_t variableStepMillis)
	Overriding this allows an aspect to respond to variable updates.

bool	handleAction (const ActionData &actionData, const ActionDefinition &actionDefinition) override final
	Pipes an action received from the InputManager via our SimObject to all that action's handler methods on this aspect.

ViewportNode &	getLocalViewport ()
	Returns the closest ancestor viewport to this node, if one exists (which it should, since this shouldn't be called until this aspect is attached to an active SimObject).

Public Member Functions inherited from ToyMaker::SignalTracker
	SignalTracker ()
	Constructs a new SignalTracker object.

	SignalTracker (const SignalTracker &other)
	Constructs a new SignalTracker.

SignalTracker &	operator= (const SignalTracker &other)
	Copy assignment operator.

	SignalTracker (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, invalidating them from the other.

SignalTracker &	operator= (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, destroying this tracker's resources in the process.

void	connect (const std::string &theirSignal, const std::string &ourObserver, SignalTracker &other)
	Method that connects one of this objects SignalObservers to another tracker's Signal.

Static Public Member Functions
static std::string	getSimObjectAspectTypeName ()
	Gets the aspect type string associated with this class.

static std::shared_ptr< BaseSimObjectAspect >	create (const nlohmann::json &jsonAspectProperties)
	Constructs this aspect from its JSON description.

Public Attributes
ToyMaker::Signal< glm::u8vec2 >	mSigBoardClicked { *this, "BoardClicked" }
	The event emitted signalling to the 3D viewport controller that a location on the board was clicked.

Private Member Functions
	BoardLocations ()
	Constructs a new Board Locations object.

Private Attributes
std::array< uint8_t, 3 >	mRowLengths {4, 12, 4}
	The lengths of the 3 rows of the game board representing the number of valid houses on it.

Additional Inherited Members
Protected Member Functions inherited from ToyMaker::SimObjectAspect< BoardLocations >
	SimObjectAspect (int explicitlyInitializeMe)

Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
	BaseSimObjectAspect (const BaseSimObjectAspect &other)=delete

	BaseSimObjectAspect (BaseSimObjectAspect &&other)=delete

SimObject &	getSimObject ()
	Returns the sim object that this aspect is attached to.

template<typename TComponent>
void	addComponent (const TComponent &component)
	Adds a component of some type to the underlying entity.

template<typename TComponent>
bool	hasComponent ()
	Tests whether a component of some specific type is present on the object.

template<typename TComponent>
void	updateComponent (const TComponent &component)
	Updates the value of a component belonging to this object to a new one.

template<typename TComponent>
TComponent	getComponent (const float simulationProgress=1.f) const
	Gets the value of a component belonging to this object.

template<typename TComponent>
void	removeComponent ()
	Removes a component of some type belonging to the underlying SimObject.

void	addAspect (const nlohmann::json &jsonAspectProperties)
	Adds a new aspect to the underlying SimObject constructed based on its properties in JSON.

void	addAspect (const BaseSimObjectAspect &aspect)
	Adds a new aspect to the underlying SimObject copied from an already existing aspect.

template<typename TSimObjectAspect>
bool	hasAspect () const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.

bool	hasAspect (const std::string &aspectType) const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.

template<typename TSimObjectAspect>
TSimObjectAspect &	getAspect ()
	Gets an aspect of a particular type belonging to the underlying SimObject.

BaseSimObjectAspect &	getAspect (const std::string &aspectType)
	Gets (a base class reference to) an aspect of a particular type belonging to the underlying SimObject.

template<typename TSimObjectAspect>
void	removeAspect ()
	Removes an aspect from the underlying SimObject.

void	addOrReplaceAspect (const BaseSimObjectAspect &aspect)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed as a copy of another.

void	addOrReplaceAspect (const nlohmann::json &jsonAspectProperties)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed from its JSON description.

std::weak_ptr< FixedActionBinding >	declareFixedActionBinding (const std::string &context, const std::string &action, std::function< bool(const ActionData &, const ActionDefinition &)>)
	Binds some method (or any function) present on this object to an action generated by the InputManager.

EntityID	getEntityID () const
	Gets the ID of the ECSWorld Entity belonging to our SimObject.

std::weak_ptr< ECSWorld >	getWorld () const
	Gets a weak reference to the ECSWorld to which our SimObject's entity belongs.

Static Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
template<typename TSimObjectAspectDerived>
static void	registerAspect ()
	Registers an implementation of an aspect with the SimSystem.

Detailed Description

The aspect responsible for mapping points on the 3D game board to their equivalent coordinates on the game board data model.

Member Function Documentation

◆ boardPointToGridIndices()

glm::uvec2 BoardLocations::boardPointToGridIndices ( glm::vec2 point ) const

Given the 2D coordinates of a point relative to the top surface of the board, returns the equivalent game board data model grid coordinates.

Parameters

point The 2D coordinates of a point on the surface of the board.

Returns: glm::uvec2 The game board grid coordinates.

◆ clone()

std::shared_ptr< ToyMaker::BaseSimObjectAspect > BoardLocations::clone ( ) const

overridevirtual

Uses this aspect's data to construct a new aspect.

Returns: std::shared_ptr<BaseSimObjectAspect> The newly constructed aspect.

Implements ToyMaker::BaseSimObjectAspect.

◆ create()

std::shared_ptr< ToyMaker::BaseSimObjectAspect > BoardLocations::create ( const nlohmann::json & jsonAspectProperties )

static

Constructs this aspect from its JSON description.

This is its appearance in JSON:

{ "type": "BoardLocations" }

Parameters

jsonAspectProperties This aspect's description in JSON.

Returns: std::shared_ptr<BaseSimObjectAspect> The newly constructed aspect.

◆ getSimObjectAspectTypeName()

static std::string BoardLocations::getSimObjectAspectTypeName ( )

inlinestatic

Gets the aspect type string associated with this class.

Returns: std::string This class' aspect type string.

◆ gridIndicesToBoardPoint()

glm::vec4 BoardLocations::gridIndicesToBoardPoint ( glm::u8vec2 gridIndices ) const

Translates game board data model grid coordinates to their real world 3D coordinates equivalent.

Parameters

gridIndices The game board data model grid location.

Returns: glm::vec4 The equivalent 3D coordinates.

◆ onPointerLeftClick()

bool BoardLocations::onPointerLeftClick ( glm::vec4 clickLocation )

overridevirtual

Responds to left click events by logging them to the console, translating the location of the click to their game board grid coordinates.

Parameters

clickLocation The 3D coordinates of the location on the board that was clicked.

Return values

true	The location clicked corresponded to a real game board grid location.
false	The location clicked did not correspond to a real game board grid location.

Implements ILeftClickable.

◆ onPointerLeftRelease()

bool BoardLocations::onPointerLeftRelease ( glm::vec4 clickLocation )

inlineoverridevirtual

Responds to a full left click by emitting mSigBoardClicked with the clicked location's equivalent game board coordinates, if possible.

Parameters

clickLocation The 3D coordinates of the point on the board that was clicked.

Return values

true	The clicked location caused mSigBoardClicked to be emitted.
false	No signal was emitted as a result of this click.

Implements ILeftClickable.

The documentation for this class was generated from the following files:

src/app/board_locations.hpp
src/app/board_locations.cpp
