ToyMaker::VolumeBase_ Struct Reference

The base class of all spatial query volumes. More...

#include <types.hpp>

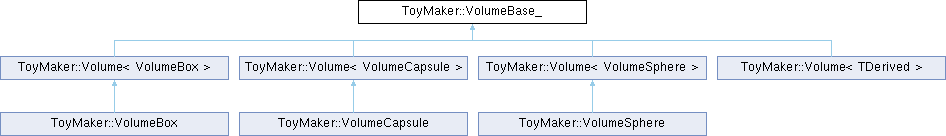

Inheritance diagram for ToyMaker::VolumeBase_:

Public Member Functions
template<typename TDerived>
std::array< glm::vec3, 8 >	getVolumeRelativeBoxCorners () const
	Gets corners of the object-relative bounding box that encapsulates the derived volume.
template<typename TDerived>
bool	isSensible () const
	Returns whether or not the derived volume has sensible parameters (i.e., isn't infinite or invalid).
template<typename TDerived>
bool	isPositiveStrict () const
	Returns whether or not the derived volume has strictly positive parameters.

Static Public Member Functions
static constexpr std::array< glm::vec3, 8 >	GetCornerSignsArray ()
	Returns an array populated with axis-wise sign multipliers, where the positions on the array correspond to the corner of a box.
static std::array< glm::vec3, 8 >	ComputeBoxCorners (const glm::vec3 &boxDimensions)
	Computes the model relative corners of a box, given the dimensions of the box.

Detailed Description

The base class of all spatial query volumes.

Provides functions and methods for retrieving and computing volume relative and axis aligned box corner coordinates.

Member Function Documentation

ComputeBoxCorners()

std::array< glm::vec3, 8 > ToyMaker::VolumeBase_::ComputeBoxCorners ( const glm::vec3 & boxDimensions )

inlinestatic

Computes the model relative corners of a box, given the dimensions of the box.

Parameters

boxDimensions

A box's width, height, and depth.

Returns

std::array<glm::vec3, 8> An array of box corner coordinates.

GetCornerSignsArray()

constexpr std::array< glm::vec3, 8 > ToyMaker::VolumeBase_::GetCornerSignsArray ( )

inlinestaticconstexpr

Returns an array populated with axis-wise sign multipliers, where the positions on the array correspond to the corner of a box.

Returns

constexpr std::array<glm::vec3, 8> Array of axis-wise sign multipliers for box corners.

See also

BoxCornerSpecifier

BoxCorner

getVolumeRelativeBoxCorners()

template<typename TDerived>

std::array< glm::vec3, 8 > ToyMaker::VolumeBase_::getVolumeRelativeBoxCorners ( ) const

inline

Gets corners of the object-relative bounding box that encapsulates the derived volume.

Forces subclasses to implement their own version of this function without breaking their ability to be aggregate initialized.

See also

Volume::getVolumeRelativeBoxCorners()

isPositiveStrict()

template<typename TDerived>

bool ToyMaker::VolumeBase_::isPositiveStrict ( ) const

inline

Returns whether or not the derived volume has strictly positive parameters.

Forces subclasses to implement their own version of this function without breaking their ability to be aggregate initialized

See also

Volume::isPositiveStrict()

isSensible()

template<typename TDerived>

bool ToyMaker::VolumeBase_::isSensible ( ) const

inline

Returns whether or not the derived volume has sensible parameters (i.e., isn't infinite or invalid).

Forces subclasses to implement their own version of this function without breaking their ability to be aggregate initialized.

See also

Volume::isSensible()

---

The documentation for this struct was generated from the following file:

• ToyMaker_Main/include/toymaker/engine/spatial_query/types.hpp
