ToyMaker::RenderDebugViewer Class Reference

A utility aspect class used to log window events and change the debug texture rendered to the viewport it manages. More...

#include <render_debug_viewer.hpp>

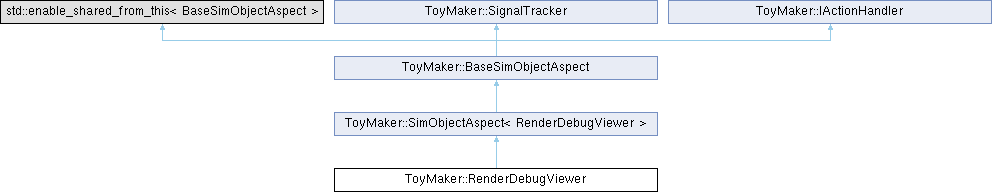

Inheritance diagram for ToyMaker::RenderDebugViewer:

Public Member Functions
std::shared_ptr< BaseSimObjectAspect >	clone () const override
	A method which must be overridden to specify how a new aspect should be constructed as a copy of this one.
void	printWindowProps ()
Public Member Functions inherited from ToyMaker::BaseSimObjectAspect
virtual	~BaseSimObjectAspect ()=default
	Destroys this object.
virtual void	simulationUpdate (uint32_t simStepMillis)
	Overriding this allows an aspect to respond to simulation updates.
virtual void	variableUpdate (uint32_t variableStepMillis)
	Overriding this allows an aspect to respond to variable updates.
bool	handleAction (const ActionData &actionData, const ActionDefinition &actionDefinition) override final
	Pipes an action received from the InputManager via our SimObject to all that action's handler methods on this aspect.
ViewportNode &	getLocalViewport ()
	Returns the closest ancestor viewport to this node, if one exists (which it should, since this shouldn't be called until this aspect is attached to an active SimObject).
Public Member Functions inherited from ToyMaker::SignalTracker
	SignalTracker ()
	Constructs a new SignalTracker object.
	SignalTracker (const SignalTracker &other)
	Constructs a new SignalTracker.
SignalTracker &	operator= (const SignalTracker &other)
	Copy assignment operator.
	SignalTracker (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, invalidating them from the other.
SignalTracker &	operator= (SignalTracker &&other)
	Moves resources from another SignalTracker into this one, destroying this tracker's resources in the process.
void	connect (const std::string &theirSignal, const std::string &ourObserver, SignalTracker &other)
	Method that connects one of this objects SignalObservers to another tracker's Signal.

Static Public Member Functions
static std::string	getSimObjectAspectTypeName ()
static std::shared_ptr< BaseSimObjectAspect >	create (const nlohmann::json &jsonAspectProperties)

Public Attributes
ToyMaker::SignalObserver	mObserveWindowResized { *this, "WindowResizedObserved", [this]() { std::cout << "RenderDebugViewer: Window was resized\n"; this->printWindowProps(); } }
ToyMaker::SignalObserver	mObserveWindowMinimized { *this, "WindowMinimizedObserved", [this]() { std::cout << "RenderDebugViewer: Window was minimized\n"; this->printWindowProps(); } }
ToyMaker::SignalObserver	mObserveWindowMaximized { *this, "WindowMaximizedObserved", [this]() { std::cout << "RenderDebugViewer: Window was maximized\n"; this->printWindowProps(); } }
ToyMaker::SignalObserver	mObserveWindowMoved { *this, "WindowMovedObserved", [this]() { std::cout << "RenderDebugViewer: Window was moved\n"; this->printWindowProps(); } }
ToyMaker::SignalObserver	mObserveWindowMouseEntered { *this, "WindowMouseEnteredObserved", [this]() { std::cout << "RenderDebugViewer: Mouse entered window\n"; this->printWindowProps(); } }
ToyMaker::SignalObserver	mObserveWindowMouseExited { *this, "WindowMouseExitedObserved", [this]() { std::cout << "RenderDebugViewer: Mouse left window\n"; this->printWindowProps(); } }
ToyMaker::SignalObserver	mObserveWindowCloseRequested { *this, "WindowCloseRequestedObserved", [this]() { std::cout << "RenderDebugViewer: Window close requested\n"; this->printWindowProps(); } }
ToyMaker::SignalObserver	mObserveWindowSizeChanged { *this, "WindowSizeChangedObserved", [this]() { std::cout << "RenderDebugViewer: Window's size was changed\n"; this->printWindowProps(); } }
ToyMaker::SignalObserver	mObserveWindowRestored { *this, "WindowRestoredObserved", [this]() { std::cout << "RenderDebugViewer: Window was restored\n"; this->printWindowProps(); } }
ToyMaker::SignalObserver	mObserveWindowShown { *this, "WindowShownObserved", [this]() { std::cout << "RenderDebugViewer: Window was shown\n"; this->printWindowProps(); } }
ToyMaker::SignalObserver	mObserveWindowExposed { *this, "WindowExposedObserved", [this]() { std::cout << "RenderDebugViewer: Window was exposed\n"; this->printWindowProps(); } }
ToyMaker::SignalObserver	mObserveWindowKeyFocusGained { *this, "WindowKeyFocusGainedObserved", [this]() { std::cout << "RenderDebugViewer: Window gained key focus\n"; this->printWindowProps(); } }
ToyMaker::SignalObserver	mObserveWindowKeyFocusLost { *this, "WindowKeyFocusLostObserved", [this]() { std::cout << "RenderDebugViewer: Window lost key focus\n"; this->printWindowProps(); } }
ToyMaker::SignalObserver	mObserveWindowKeyFocusOffered { *this, "WindowKeyFocusOffered", [this]() { std::cout << "RenderDebugViewer: Window was offered key focus\n"; this->printWindowProps(); } }

Protected Member Functions
bool	onUpdateGamma (const ToyMaker::ActionData &actionData, const ToyMaker::ActionDefinition &actionDefinition)
bool	onUpdateExposure (const ToyMaker::ActionData &actionData, const ToyMaker::ActionDefinition &actionDefinition)
bool	onRenderNextTexture (const ToyMaker::ActionData &actionData, const ToyMaker::ActionDefinition &actionDefinition)
Protected Member Functions inherited from ToyMaker::SimObjectAspect< RenderDebugViewer >
	SimObjectAspect (int explicitlyInitializeMe)
Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
	BaseSimObjectAspect (const BaseSimObjectAspect &other)=delete
	BaseSimObjectAspect (BaseSimObjectAspect &&other)=delete
SimObject &	getSimObject ()
	Returns the sim object that this aspect is attached to.
template<typename TComponent>
void	addComponent (const TComponent &component)
	Adds a component of some type to the underlying entity.
template<typename TComponent>
bool	hasComponent ()
	Tests whether a component of some specific type is present on the object.
template<typename TComponent>
void	updateComponent (const TComponent &component)
	Updates the value of a component belonging to this object to a new one.
template<typename TComponent>
TComponent	getComponent (const float simulationProgress=1.f) const
	Gets the value of a component belonging to this object.
template<typename TComponent>
void	removeComponent ()
	Removes a component of some type belonging to the underlying SimObject.
void	addAspect (const nlohmann::json &jsonAspectProperties)
	Adds a new aspect to the underlying SimObject constructed based on its properties in JSON.
void	addAspect (const BaseSimObjectAspect &aspect)
	Adds a new aspect to the underlying SimObject copied from an already existing aspect.
template<typename TSimObjectAspect>
bool	hasAspect () const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.
bool	hasAspect (const std::string &aspectType) const
	Tests whether an aspect of a particular type is attached to the underlying SimObject.
template<typename TSimObjectAspect>
TSimObjectAspect &	getAspect ()
	Gets an aspect of a particular type belonging to the underlying SimObject.
BaseSimObjectAspect &	getAspect (const std::string &aspectType)
	Gets (a base class reference to) an aspect of a particular type belonging to the underlying SimObject.
template<typename TSimObjectAspect>
void	removeAspect ()
	Removes an aspect from the underlying SimObject.
void	addOrReplaceAspect (const BaseSimObjectAspect &aspect)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed as a copy of another.
void	addOrReplaceAspect (const nlohmann::json &jsonAspectProperties)
	Adds or replaces an aspect on the underlying SimObject with a new aspect constructed from its JSON description.
std::weak_ptr< FixedActionBinding >	declareFixedActionBinding (const std::string &context, const std::string &action, std::function< bool(const ActionData &, const ActionDefinition &)>)
	Binds some method (or any function) present on this object to an action generated by the InputManager.
EntityID	getEntityID () const
	Gets the ID of the ECSWorld Entity belonging to our SimObject.
std::weak_ptr< ECSWorld >	getWorld () const
	Gets a weak reference to the ECSWorld to which our SimObject's entity belongs.

Protected Attributes
std::weak_ptr< ToyMaker::FixedActionBinding >	handleUpdateGamma
std::weak_ptr< ToyMaker::FixedActionBinding >	handleUpdateExposure
std::weak_ptr< ToyMaker::FixedActionBinding >	handleRenderNextTexture

Private Attributes
float	mGammaStep { .1f }
float	mExposureStep { .1f }

Additional Inherited Members
Static Protected Member Functions inherited from ToyMaker::BaseSimObjectAspect
template<typename TSimObjectAspectDerived>
static void	registerAspect ()
	Registers an implementation of an aspect with the SimSystem.

Detailed Description

A utility aspect class used to log window events and change the debug texture rendered to the viewport it manages.

Member Function Documentation

clone()

std::shared_ptr< ToyMaker::BaseSimObjectAspect > RenderDebugViewer::clone ( ) const

overridevirtual

A method which must be overridden to specify how a new aspect should be constructed as a copy of this one.

Returns

std::shared_ptr<BaseSimObjectAspect> The newly constructed aspect.

Implements ToyMaker::BaseSimObjectAspect.

Member Data Documentation

handleRenderNextTexture

std::weak_ptr<ToyMaker::FixedActionBinding> ToyMaker::RenderDebugViewer::handleRenderNextTexture

protected

Initial value:

{ declareFixedActionBinding(
            "Graphics", "RenderNextTexture", [this](const ToyMaker::ActionData& actionData, const ToyMaker::ActionDefinition& actionDefinition) {
                return this->onRenderNextTexture(actionData, actionDefinition);
            }
        )}

handleUpdateExposure

std::weak_ptr<ToyMaker::FixedActionBinding> ToyMaker::RenderDebugViewer::handleUpdateExposure

protected

Initial value:

{ declareFixedActionBinding (
            "Graphics", "UpdateExposure", [this](const ToyMaker::ActionData& actionData, const ToyMaker::ActionDefinition& actionDefinition) {
                return this->onUpdateExposure(actionData, actionDefinition);
            }
        )}

handleUpdateGamma

std::weak_ptr<ToyMaker::FixedActionBinding> ToyMaker::RenderDebugViewer::handleUpdateGamma

protected

Initial value:

{ declareFixedActionBinding (
            "Graphics", "UpdateGamma", [this](const ToyMaker::ActionData& actionData, const ToyMaker::ActionDefinition& actionDefinition) {
                return this->onUpdateGamma(actionData, actionDefinition);
            }
        )}

---

The documentation for this class was generated from the following files:

• ToyMaker_Builtins/include/toymaker/builtins/render_debug_viewer.hpp
• ToyMaker_Builtins/src/render_debug_viewer.cpp
